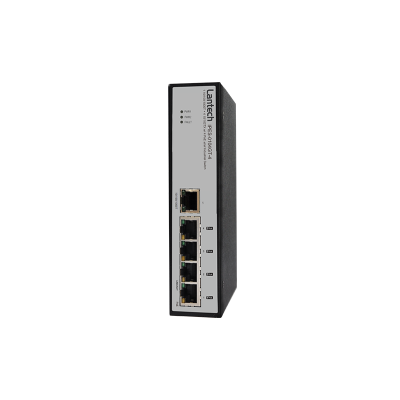

IPES-0104GT-4 - 6 port PoE injector industrial switch

In stock

SKU:

IPES-0104GT-4

- Conforms to IEEE 802.3at/af PoE standard
- Redundant power supply with overload current protection
- Wide operating temperature range from -40°C to 75°C (-E model)

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

_{IEEE Standards}	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3at/af Power over Ethernet}
_Switch _Architecture	_{Back-plane (Switching Fabric): 2.8Gbps} _{Packet throughput ability (Full-Duplex): 1.488Mpps} _@64bytes
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{MAC Address}	_{8K MAC address table}
_Connectors	_{10/100TX: 4 x RJ-45 with auto MDI/MDI-X function} _{10/100/1000T: 1 x RJ-45 with auto MDI/MDI-X} _{Support 4 PoE injector function}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_{PoE PIN} _Assignment	_{RJ-45 port #1 - #4 support IEEE 802.3af End-point;} _{Alternative A mode.} _{Positive (VCC+): RJ-45 pin 1,2} _{Negative (VCC-) : RJ-45 pin 3,6} _{Data (1,2,3,6)}
_Protocol	_CSMA/CD
_Case _Dimension	_IP-30, _{12V model: 43(W) x 105(D) x 152(H) mm} _{48V model: 35(W) x 105(D) x 152(H) mm}
_Weight	_800g
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), Fault (Red)} _{4 port 10/100TX: Link/Activity (Green), PoE (Yellow)} _{1 port 10/100/1000T: Link/Activity(Green), Full duplex/Collission(Yellow)}
_{Power Supply}	_{48VDC (45~56VDC),- 48VDC (-45~ -56VDC),} _{9.5V~56VDC dual input for 12V model}
_Power _Consumption	_6W
_{PoE budget}	_{120W for 48V model ; 80W for 12V model}
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-20°C~60°C / -4°F~140°F (Standard model)} _{-40°C~75°C / -40°F~167°F (-E model)}
_{EMI &EMS}	_{FCC Class A,} _{CE EN61000-4-2(ESD),} _{CE EN61000-4-3(RS),} _{CE EN61000-4-4(EFT),} _{CE EN61000-4-5(Surge),} _{CE EN61000-4-6(CS),} _{CE EN61000-4-8,} _{CE EN61000-4-11,} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_Stability _Testing	_{IEC60068-2-32(Free fall),} _{IEC60068-2-27(Shock),} _{IEC60068-2-6(Vibration)}
_Warranty	_{5 years}

This product is listed in Ethernet Switches

Downloads

Product Data Sheet

IPES-0104GT-4 - 6 port PoE injector industrial switch

IEEE Standards

IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet IEEE802.3x Flow Control and Back Pressure IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 2.8Gbps Packet throughput ability (Full-Duplex): 1.488Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port

MAC Address

8K MAC address table

Connectors

10/100TX: 4 x RJ-45 with auto MDI/MDI-X function 10/100/1000T: 1 x RJ-45 with auto MDI/MDI-X Support 4 PoE injector function

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m)

PoE PIN Assignment

RJ-45 port #1 - #4 support IEEE 802.3af End-point; Alternative A mode. Positive (VCC+): RJ-45 pin 1,2 Negative (VCC-) : RJ-45 pin 3,6 Data (1,2,3,6)

Protocol

CSMA/CD

Case Dimension

IP-30, 12V model: 43(W) x 105(D) x 152(H) mm 48V model: 35(W) x 105(D) x 152(H) mm

Weight

800g

LED

Per unit: Power 1 (Green), Power 2 (Green), Fault (Red) 4 port 10/100TX: Link/Activity (Green), PoE (Yellow)1 port 10/100/1000T: Link/Activity(Green), Full duplex/Collission(Yellow)

Power Supply

48VDC (45~56VDC),- 48VDC (-45~ -56VDC), 9.5V~56VDC dual input for 12V model

Power Consumption

6W

PoE budget

120W for 48V model ; 80W for 12V model

Operating Humidity

5% to 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)-40°C~75°C / -40°F~167°F (-E model)

EMI &EMS

FCC Class A, CE EN61000-4-2(ESD), CE EN61000-4-3(RS), CE EN61000-4-4(EFT), CE EN61000-4-5(Surge), CE EN61000-4-6(CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-6-2, CE EN61000-6-4

Stability Testing

IEC60068-2-32(Free fall), IEC60068-2-27(Shock), IEC60068-2-6(Vibration)

Warranty

5 years
