Brand: Panorama Antennas
LPP-7-38-3SP Hockey Puck 4G/5G 3m SMA P
Out of stock
SKU:
LPP-7-38-3SP

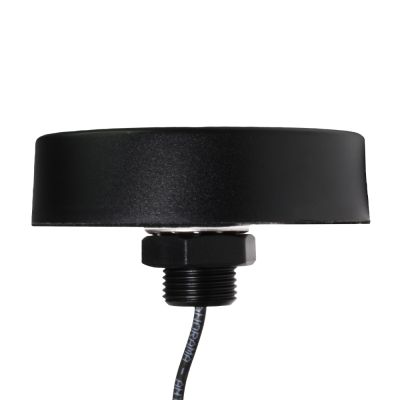

Low Profile Hockey Puck 4G/5G
Optional with GNSS
3m coax to SMA Plug
Enquire Now
Enquire Now
The L[G]P-7-38 antenna series is a range of very low profile antennas incorporating a combination of wideband cellular element covering 4G/5G frequencies along with an optional active GPS/GNSS patch with 26dB LNA gain and an optional dual band WiFi element all in an ultra compact housing.
- For installation without a ground plane
- Wideband 4G/5G LTE element
- 2.4 & 4.9-6 GHz WiFi/WiMAX element (Optional)
- Integrated GPS antenna (Optional)
Designed to be cost effective, the antennas are completely enclosed in a moulded housing made from weather resistant ASA plastic and is designed for use on plastic or non-conductive . The range is supplied with full length cables with optional 1m (3') or 3m(10') lengths and SMA or FAKRA connectors
| Electrical Data | |
| LTE Frequencies | 698-960/1710-3800MHz |
| Global Positioning | Optional GPS L1 1575; GPS L1 1575 |
| Wifi Frequencies | 2.4/5.0GHz - (Optional) |
| Peak Gain (dBi) | 2dBi |
| Max Input Power (W) | 20 |
| Ground Plane Independent | Yes |
| Mechanical Data | |
| Height (mm) | 22.5 |
| Diameter (mm) | 80 |
| Mounting Data | |
| Mounting Type | Panel Mount |
| Mounting Method | 18mm (3/4") Mounting Bush |
