MioWORK L1000 Series 10.1" IP67 Industrial Android Tablet
MioWORK F740s series, handheld rugged tablet
Key Features:
- 7-inch capacitive touch panel with anti-glare coating
- IP54 water & dust proof, up to 1.8m drop & 20G shock resistant
- 4 types of active in-vehicle cradles
- 4G LTE, WIFI connected
- Android™ 9.0 (GMS)
- Dual-satellite system – GPS & GLONASS
- NFC, HF RFID data capture
- Integrated camera
- 10 hrs+ battery life

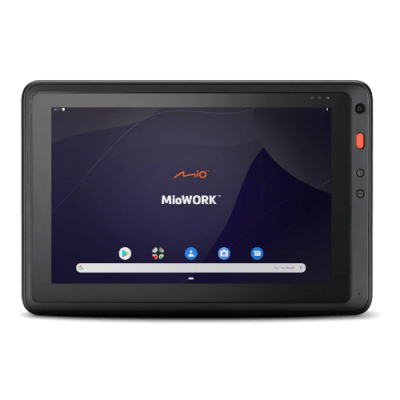

The all-new MioWORK L1000 series, with an IP67 design and 1.2m drop resistance, is an ideal solution for field workforces in outdoor environments. The large and clear 10-inch touch display can be used with wet fingers and gloves*, making it suitable for a wide range of applications. The L1000 series also includes an ultra-fast 1D/2D BCR imager and enhanced front/rear auto-focus cameras with 8 megapixels to help you work efficiently and without missing a beat. The flexible configuration slot, designed for field service, hospitality, mobile POS, and warehousing scenarios, includes I/O port options such as RS232, HD video output, and LAN to accommodate a variety of usage scenarios.
*Depending on glove type and material thickness.
Key Features:
- 10.1-inch capacitive touch panel with anti-fingerprint
- Android Enterprise Recommended (AER)
- IP67 water & dust resistant, 1.2m drop-proof
- 1D/2D barcode scanner*
- 4G LTE*, WiFi connected
- Android™ 9.0 (GMS)
- GPS*
- NFC, HF RFID data capture
- Integrated camera
- 8 hrs+ battery life, hot-swappable
- * Optional
| Display | 10.1" 1280x800 IPS (600 nits) |
|---|---|
| Touch Panel | Capacitive multi-touch with optical bonding, glove support & water resistance, anti-fingerprint coating |
| Platform | Qualcomm® Snapdragon™ SDM450 Octa-core, 1.8GHz |
| OS | Android™ 9.0 (GMS) |
| Memory |
|
| Expansion | MicroSD slot (up to 128GB) |
| Wireless Interface |
|
| NFC |
|
| Sensor | L1000 / L1005:
L1040 / L1045:
|
| BCR | L1005 / L1045: 1D/2D Laser (Honeywell N6603 ER) |
| Camera | Rear: 8 megapixels, autofocus with flash LED Front: 8 megapixels, autofocus |
| Physical Interface |
|
| Buttons |
|
| Battery |
|
| Mechanical Design | 100 x 200mm VESA mount compatible |
| Environment |
|
| Certification | CE/CB, FCC/IC, RCM, EAC, UL, NBTC, BQB, ROHS, WEEE |
| Software | MiTAC Mobile Device Management (MiDM), MiLock (Kiosk Launcher) ready; SOTI MobiControl compatible |
| Warranty | 12 months (extended warranty available) |
| Weight | 840g (29.7oz) |
| Dimensions | 272.9 x 182.3 x 7.9/18.7mm (10.74 x 7.18 x 0.31/0.74") |
| Remarks | * Region dependent ** Optional Note: no guaranteed Android version updates after Oct-21; no guaranteed security updates after Sep-25; no guaranteed telephone or online support after Sep-25. |
