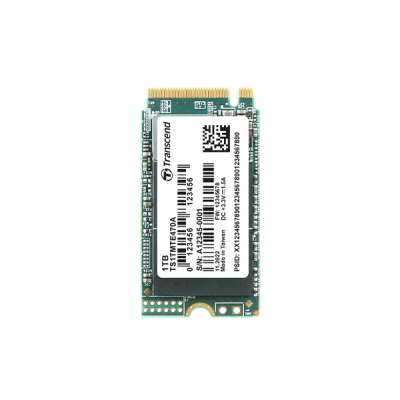

MTE470A PCIe M.2 SSD
128GB/256GB/512GB/1TB PCIe M.2 SSD TCG Opal 2.0 standards PCIe Gen 3 x4 30µ" PCB gold finger
Transcend's M.2 SSD MTE470A is a self-encrypting drive (SED) that meets TCG Opal 2.0 specifications. Data is safeguarded by hardware-based AES 256-bit encryption and sector-specific LBA (Logical Block Address) permissions.
Transcend's M.2 SSD MTE470A is made up of 112 layers of 3D NAND flash and a PCI Express (PCIe) Gen 3 x4 interface, resulting in unprecedented transfer speeds. The MTE470A is fortified to withstand demanding industrial applications thanks to its 30" gold finger PCB, Corner Bond technology, and anti-sulfur resistor. The MTE470A has been thoroughly tested in-house and can operate in temperatures ranging from -20°C to 75°C. Its M.2 2242 form factor is small and lightweight, making it ideal for mobile computing applications.
Key Features:
Firmware:
- Supports NVM command
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- Full drive encryption with Advanced Encryption Standard (AES)
- Compliant with TCG Opal specifications and IEEE 1667 standards
Hardware:
- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.3
- Compliant with PCI Express specification 3.1
- Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
- PCIe Gen 3 x4 interface
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in an extended temperature range (from -20°C to 75°C)
- Supports Transcend Scope Pro software
Appearance |
|
| Dimensions | 42 mm x 22 mm x 2.23 mm (1.65" x 0.87" x 0.09") |
|---|---|
| Weight | 5 g (0.18 oz) |
| M.2 Type |
|
| Form Factor |
|
Interface |
|
| Bus Interface |
|
Storage |
|
| Capacity |
|
| Flash Type |
|
Operating Environment |
|
| Operating Voltage |
|
| Operating Temperature |
|
| Storage Temperature | -55°C (-67°F) ~ 85°C (185°F) |
| Humidity | 5% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency) |
Power |
|
| Power Consumption (Operation) | 4.1 watt(s) |
| Power Consumption (IDLE) | 0.53 watt(s) |
Performance |
|
| Sequential Read/Write (CrystalDiskMark) | Read: up to 2,000 MB/s Write: up to 1,700 MB/s |
| 4K Random Read/Write (IOmeter) | Read: up to 102,000 IOPS Write: up to 275,000 IOPS |
| Mean Time Between Failures (MTBF) | 3,000,000 hour(s) |
| Terabytes Written (TBW) | up to 900 TBW |
| Drive Writes Per Day (DWPD) | 0.82 (3 yrs) |
| Note |
|
