Brand: Transcend

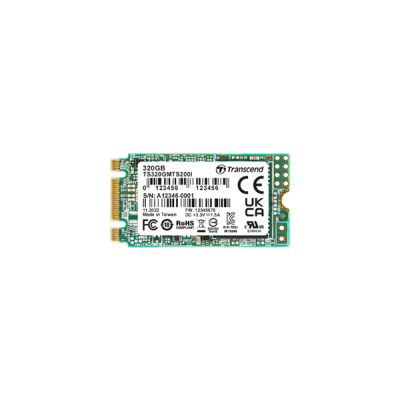

MTS200I SATA III M.2 SSD
In stock
SKU:
TSxxxxMTS200I
20GB/40GB/80GB/160GB/320GB SATA III M.2 SSD 112-layer 3D NAND flash and SLC Mode technology
Enquire Now
Enquire Now
The MTS200I from Transcend has a SATA III 6Gb/s interface, 112-layer 3D NAND flash, and SLC Mode technology, which provides high sustained speeds and SLC-grade durability. Furthermore, the 30" gold finger PCB, Corner Bond technology, and anti-sulfur resistors ensure its dependability in harsh environments. Transcend's MTS200I has also been 100% chamber tested in-house for a wide range of operating temperatures ranging from -40°C to 85°C.
Key Features:
Firmware:
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Power-saving DevSleep (Device Sleep) mode (optional)
Hardware:
- Compliant with RoHS 2.0 standards
- Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
- High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
Appearance |
|
| Dimensions | 42 mm x 22 mm x 3.58 mm (1.65" x 0.87" x 0.14") |
|---|---|
| Weight | 5 g (0.18 oz) |
| M.2 Type |
|
| Form Factor |
|
Interface |
|
| Bus Interface |
|
Storage |
|
| Capacity |
|
| Flash Type |
|
Operating Environment |
|
| Operating Voltage |
|
| Operating Temperature |
|
| Storage Temperature | -55°C (-67°F) ~ 85°C (185°F) |
| Humidity | 5% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency) |
Power |
|
| Power Consumption (Operation) | 1.1 watt(s) |
| Power Consumption (Sleep) | 0.25 watt(s) |
Performance |
|
| Sequential Read/Write (CrystalDiskMark) | Read: up to 560 MB/s Write: up to 500 MB/s |
| 4K Random Read/Write (IOmeter) | Read: up to 45,000 IOPS Write: up to 80,000 IOPS |
| Mean Time Between Failures (MTBF) | 3,000,000 hour(s) |
| Terabytes Written (TBW) | up to 2,250 TBW |
| Drive Writes Per Day (DWPD) | (3 yrs) |
| Note |
|
