MTS862K SATA III M.2 SSD
In stock
SKU:
TSxxxMTS862K
16GB/32GB SATA III M.2 SSD 6Gb/s
Enquire Now
Enquire Now

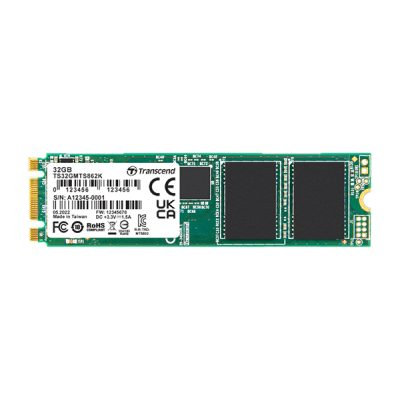

Transcend's MTS862K M.2 SSD, which features the SATA III 6Gb/s interface and Transcend's SLC Mode flash optimisation technology, delivers incredible cost performance and SLC-grade reliability in a compact M.2 form factor. It is ideal for high-performance computing and embedded verticals where space is limited, and it fully meets the requirements of small form factor systems. The MTS862K M.2 SSD features DRAM cache for consistent speeds and cache performance, as well as firmware optimisation for even more flexibility.
Key Features:
Firmware:
- Built-in BCH ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Security Command
- Hardware Purge (optional)
- Power-saving DevSleep (Device Sleep) mode
Hardware:
- Compliant with RoHS 2.0 standards
- Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
- DDR3 DRAM Cache embedded
- High-quality MLC NAND flash and SLC mode (also called SuperMLC) for exceptional endurance and reliability
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Supports Transcend Scope Pro software
Appearance |
|
| Dimensions | 80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14") |
|---|---|
| Weight | 9 g (0.32 oz) |
| M.2 Type |
|
| Form Factor |
|
Interface |
|
| Bus Interface |
|
Storage |
|
| Capacity |
|
| Flash Type |
|
Operating Environment |
|
| Operating Voltage |
|
| Operating Temperature |
|
| Storage Temperature | -40°C (-40°F) ~ 85°C (185°F) |
| Humidity | 5% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency) |
Power |
|
| Power Consumption (Operation) | 1.91 watt(s) |
| Power Consumption (Sleep) | 0.33 watt(s) |
Performance |
|
| Sequential Read/Write (CrystalDiskMark) | Read: up to 530 MB/s Write: up to 150 MB/s |
| 4K Random Read/Write (IOmeter) | Read: up to 65,000 IOPS Write: up to 35,000 IOPS |
| Mean Time Between Failures (MTBF) | 3,000,000 hour(s) |
| Terabytes Written (TBW) | up to 580 TBW |
| Drive Writes Per Day (DWPD) | 14.8 (3 yrs) |
| Note |
|
