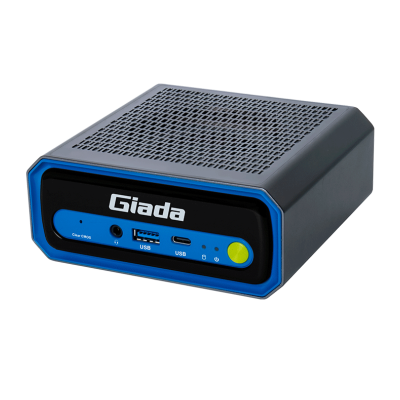

N601 Intel Core Ultra Embedded AI Computer
Intel Meteor Lake Core Ultra AI Embedded Computer
Key Features:
- Intel Meteor Lake Core Ultra processors
- Intel® AI Boost NPU, Max frequency 1.4 GHz
- 1 x HDMI (4096 x 2304 @60 Hz)
- 1 x DP (7680 x 4320 @60 Hz)
- Thunderbolt 4
- Support Wi-Fi 7
Designed for AI tasks such as image/video editing, creative projects, and team collaboration, the Giada AI PC N601 is powered by Intel's AI-capable Meteor Lake Ultra 5 / Ultra 7 processors. With up to 34 TOPS computing capability, the N601 can efficiently handle various AI tasks locally, enhancing workplace efficiency and privacy.
Giada N601's ability to capture and process visual data, combined with the quality of its display outputs, is industry-leading. An HDMI 2.0 port and a DP 1.4 are both capable of achieving 8K resolution at 60Hz, leverage Intel®: Arc graphics to deliver crystal clear imaging for gaming, AI-assisted healthcare imaging and smart retail signage. The overall performance of Intel®: Arc graphics is doubled compared to the previous generation Iris Xe integrated graphics.
The N601 features an ultra-compact design for easy deployment while providing users with powerful expandability. It offers 1 M.2 slot supporting PCIe 5.0 NVMe SSDs, with read/write speeds of up to 10 GB/s (80Gbps). Additionally, it provides an M.2 slot supporting PCIe 4.0 NVMe SSDs, with read/write speeds of 5 GB/s (40Gbps), and a 2.5-inch SATA hard drive bay.
The Giada N601 enables ultra-fast file sharing with Thunderbolt 4, capable of reaching speeds of up to 40 Gbps and making transferring videos (up to 8K@60Hz resolution, or extension 2X 4K@60fps video playback) and gigantic files a breeze.
Giada N601 incorporates an M.2 (2230) for flexible Wi-Fi/BT functionality, supporting Wi-Fi 7. Wi-Fi 7 elevates wireless experiences and feature extreme data speeds and consistent low latency. Wi-Fi 7 can deliver peak rates of over 40 Gbps, a 4X increase over Wi-Fi 6E. With Giada N601, say goodbye to crowded networks and hello to a smoother, more reliable connection.
|
CPU |
CPU |
Intel® Core™ Ultra 5 processor 125H
Intel® Core™ Ultra 7 processor 155H
|
|
Max Turbo Frequency
|
4.50 GHz /4.80 GHz
|
|
|
Chipset |
SoC |
|
|
Processing Units |
14 Cores /16 Cores
|
|
|
Base Power |
28 W /28 W |
|
|
NPU |
Intel AI Boost, 1.4 GHz |
|
|
Frameworks Supported
|
OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
|
|
|
Memory |
Size |
Up to 86 GB |
|
Type |
2 x SO-DIMM DDR5-5600 MHz |
|
|
Storage |
Socket 1 |
1 x M-Key M.2 (2280) PCIe5.0 X4 for SSD |
|
Socket 2 |
1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD |
|
|
Socket 3 |
1 x 2.5” SATAIII |
|
|
Display |
GPU |
Intel® Arc™ graphics |
|
Graphic Engine |
DirectX 12.2, OpenGL 4.6, OpenCL 3.0,
H.264 /H.265 /AV1 Hardware Encode /Decode, VP9 Bitstream & Decoding
|
|
|
Display Interface |
1 x HDMI (Max.4096 x 2304 @60Hz) 1 x DP1.4 (Max.7680 x 4320 @60Hz) |
|
|
Multi-display
|
Quad 4K@60Hz (2 via Thunderbolt 4 + 2 via HDMI/DP)
Dual 8K@60Hz (1 via Thunderbolt 4 + 1 via DP1.4)
|
|
|
Network |
Network Controller |
1 x Intel i226-V Gigabit Ethernet |
|
Ethernet Interface |
1 x 2.5GbE RJ45 |
|
|
Wi-Fi/BT |
1 x E-Key M.2(2230) for Wi-Fi/BT, Support Wi-Fi 6, Wi-Fi 6E (CNVi), Wi-Fi 7 |
|
|
Mobile Network |
NA |
|
|
I/O interface |
USB |
1 x USB Type-C3.2 Gen2, 1 x USB3.2 Gen 2, 2 x USB 3.2 Gen 1, 1 x Thunderbolt 4
|
|
Serial Port |
NA |
|
|
Audio |
1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
Antenna |
2 x Internal Wi-Fi Antenna |
|
|
System |
TPM |
Optional: TPM2.0 |
|
Watchdog Timer |
Yes |
|
|
Auto Power On |
Yes |
|
|
RTC |
Set up independently every day, a week as a cycle |
|
|
Power Requirement |
DC-IN, 19 V/6.32 A |
|
|
Dimensions |
126 mm x 117 mm x 50 mm (4.96” x 4.60” x 1.97”) |
|
|
Construction |
Metal, Grey. I/O Panel, Plastic |
|
|
Operating System |
Windows 11 (64bit) /Linux Ubuntu (64bit) |
|
|
Operating Temperature |
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow |
|
|
Humidity |
95% @ 40°C (non-condensing) |
|
|
Certifications |
CE, FCC Class B, UKCA |
