Brand: Nexcom

NDiS-B338 Fanless Embedded PC Celeron J6412

In stock
SKU:
NDiS-B338

Slim/fanless player with extended temperature durability, HDMI display, USB 3.0 ports, and a RS232/RS422/RS485 interface

Key Features:

  • Intel Celeron J6412 processor
  • Support 3 x HDMI 2.0 output
  • Support 12V~24V DC input
  • Compact and slim design (H: 38.8mm)
  • 2 x DDR4 up to 32G
  • 1 x M.2 2280 Key M for optional storage device
  • 1 x M.2 3042/3052 Key B for optional LTE or 5G modules
  • 1 x mini-PCIe for optional Wi-Fi and LTE
  • Fanless design

Enquire Now
Enquire Now
main product photo
We build to order

The NDiS B338 fanless embedded player, powered by an Intel Celeron processor, can handle three independent display outputs. The NDiS B338 is an ideal embedded player for optimising information visualisation, conveying brand messages, customer engagement, and smart retail management efficiencies to increase in-store traffic and sales. It has an HDMI display, USB 3.0 ports, and an RS232/RS422/RS485 interface. It could also be used as a smart city gateway.

The NDiS B338 is a slim/fanless player with extended temperature durability, making it suitable for outdoor applications such as QSR drive-through kiosks, box office displays, information stands, bus stops, or digital transit information signs. It is also ideal as a digital signage player, delivering enhanced performance and new immersive experiences for applications such as advertising, hospitality, and brand promotion.

Key Features:

  • Intel Celeron J6412 processor
  • Support 3 x HDMI 2.0 output
  • Support 12V~24V DC input
  • Compact and slim design (H: 38.8mm)
  • 2 x DDR4 up to 32G
  • 1 x M.2 2280 Key M for optional storage device
  • 1 x M.2 3042/3052 Key B for optional LTE or 5G modules
  • 1 x mini-PCIe for optional Wi-Fi and LTE
  • Fanless design

This product is listed in Embedded Computers, Digital Signage, Industrial Automation
Specifications
CPU Support
  • Intel Celeron J6412 processor, 10W
Graphic
  • Intel UHD graphics
Main Memory
  • 2 x 260-pin SO-DIMM sockets, supports DDR4 3200MT/s MHz, Non-ECC, un-buffered memory up to 32G (single socket max. 16GB)

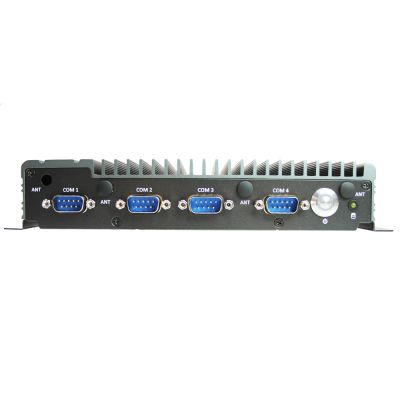

I/O Interface-Front
  • Power button with LED
  • 4 x COM port
    - COM1: RS232/422/485
    - COM2~COM4: RS232
  • 4 x Antenna holes
I/O Interface-Rear
  • 3 x HDMI 2.0
  • 2 x RJ45 Gigabit LAN with LEDs
  • 1 x USB 3.1
  • 5 x USB 2.0
  • 1 x Mic-in
  • 1 x Line out
  • 12V~24V DC input
Internal I/O
  • 8 x GPIO (4 x GPI, 4 x GPO)
  • 1 x 4-pin connector for smart FAN
  • TPM 2.0 onboard
  • 1 x USB 2.0 pin header
  • 1 x Speaker-out pin header with 2.5W/8Ω amplifier
Expansion
  • 1 x M.2 3042/3052 Key B (USB 3.2, USB 2.0) for optional LTE or 5G modules
  • 1 x mini-PCIe slot (USB 2.0, PCIe x1, SATA) for optional Wi-Fi and LTE
  • 1 x SIM slot
Storage
  • 1 x M.2 2280 Key M (PCIe Gen3 x4) for optional storage modules
Power Supply
  • 1 x External 60W AC/DC power adapter
  • Input: 100VAC to 240VAC
  • Output: DC+12VDC
Environment
  • Operating temperature: -20°C to 60°C
  • Storage temperature: -20°C to 80°C
  • Humidity: 10 to 95% (non-condensing)
Dimensions
  • 224mm (W) x 150mm (D) x 38.8mm (H) (with wall mount bracket)
Certifications
  • CE (EN55035 + EN55032)
  • FCC Class A (EMI Part 15B)
  • LVD (EN62368-1)
Operating System
  • Win10
Downloads
pdf
Datasheet
pdf
User Manual
Ordering Information

NDiS B338 (P/N: 10W00B33800X0)
Intel® Celeron® Processor J6412 slim and fanless system
