Brand: Nexcom

Neu-X60 Palm-sized Fanless Edge Computer

In stock
SKU:
Neu-X60

Intel N50 processor, Palm-sized Fanless Edge Computing System

Key Features:

  • Intel® Processor N50

  • Small footprint in Palm size

  • Pre-installed 4G memory

  • Pre-installed 64G M.2 storage

  • Support 1x Intel I226-V 2.5GbE LAN

  • 1x HDMI, 1x RS232/422/485, 2x USB3.2

  • 1x mini PCIe full size for optional wireless module

  • Great value for indoor applications


Enquire Now
Enquire Now

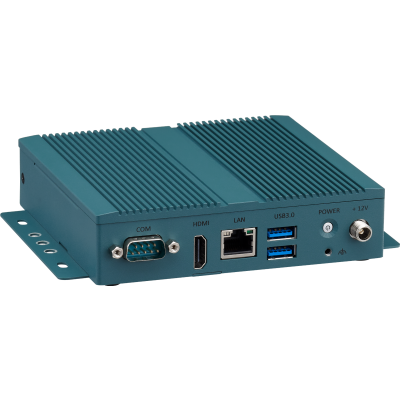

main product photo
We build to order

The Neu-X60 is a palm-sized, fanless edge computing system that runs on an Intel processor N50. It has a low-power, highly efficient performance design making it perfect for edge computing applications with limited space or low-power-consumption designs.

The system supports 1 HDMI display, 1 2.5GbE LAN port, 2 USB 3.2 ports, and 1 RS232/RS422/RS485 interface. The Neu-X60 comes pre-installed with 4GB memory and 64GB M.2 storage onboard. It is ideal for applications that require a simple but dependable controller.

This system is well-suited for digital signage, industrial controller systems, IoT gateway, self-service kiosks, indoor applications, and retail equipment.


This product is listed in Embedded Computers
Specifications

CPU Support

Intel® Processor N50 (up to 3.4 GHz, TDP 6W)

Graphics

Intel® UHD Graphics 750 MHz

Main Memory

  • 1 x SO-DIMM socket, supports up to 16GB DDR4 3200MHz, non-ECC and un-buffered memory

  • Pre-installed with one 4G DDR4 memory

I/O Interface-Front

  • 1 x 12V DC Jack, lockable design

  • 1 x HDD Active LED

  • 1 x Power button with LED

  • 1 x RJ45 with LED for 2.5GbE LAN

  • 2 x USB3.2

  • 1 x HDMI1.4

  • 1 x DB9 RS232/422/485

I/O Interface-Rear

2 x Antenna hole

Internal I/O

2 x 5-pin header for two USB 2.0 ports

Expansion

1x Full-size mini PCIe slot with nano sim slot onboard, support optional WiFi / BT/ 4G module

Storage

  • 1x M.2 Key M 2242 storage, supports both SATA & PCIe signals

  • Pre-installed with one M.2 Key M 64G SSD

Power Supply

  • +12V DC Input

  • One AC/DC 12V/5A, 50W power adapter in accessory

Environment

  • Operating temperature: 0°C to 40°C ambient with 0.7m/s air flow

  • Relative humidity: 10% to 95% (non-condensing)

  • Vibration protection:

    - Random: 2Grms @ 5~500 Hz, IEC60068-2-64

    - Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6

Dimensions

  • System dimension: 156mm (L) x 119.6mm (W) x 31mm (H) (With bracket)

  • System weight: 0.0553 kg

  • Package dimensions: 230x215x115mm

  • Package weight: 1.15Kg

Operating System

  • Win10 64-bit

  • Linux 4.1
Downloads
pdf
Datasheet
Ordering Information

Neu-X60 (P/N: 10W100X6000X0)

Intel® N50 processor, Palm-sized Fanless Edge Computing System
