Brand: Nexcom

NISE-70 Celeron/Core Fanless System

In stock

SKU:

NISE-70-T01/T02/T03

Intel Celeron 6305E Processor Dual Core Fanless System

Key Features:

Onboard Intel Celeron 6305E Processor
4 x HDMI
3 x USB 3.0, 1 x USB 2.0
1 x RS232/422/485, 1 x RS232
3 x GbE LAN ports; support WoL, teaming and PXE
Onboard TPM 2.0 chip
1 x M.2 socket for storage/4G LTE/5G modules
1 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE module
Support operating temperature from-5 to 55 Celsius degree
Support+12V to 24VDC input; support ATX power mode

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

NISE 70 is a fanless PC designed for industrial applications that require low power consumption and many I/O interfaces but have limited installation space. It is powered by the latest generation Intel® Celeron® 6305E processor (formerly codenamed "Tiger Lake-UP3").

NISE 70 has an operating temperature range of -5~55 degrees Celsius and a DC power input range of 12V to 24V. The NISE 70 is also the first system in the slim NISE 50 series to support four independent displays and up to 32GB of DDR4 3200MHz memory. The NISE 70 has robust connectivity - an Ethernet-based LAN port and a traditional serial port, primarily used for Modbus TCP or Modbus RTU communication.

There are 1 x miniPCIe socket and 1 x M.2 socket for wireless connectivity, which can support optional wireless modules for IoT applications such as Wi-Fi, Bluetooth, 4G LTE, 5G modules, and storage modules. As an intelligent IoT gateway, the NISE 70 is unquestionably the best choice for M2M intelligent systems.

Key Features:

Onboard Intel Celeron 6305E Processor
4 x HDMI
3 x USB 3.0, 1 x USB 2.0
1 x RS232/422/485, 1 x RS232
3 x GbE LAN ports; support WoL, teaming and PXE
Onboard TPM 2.0 chip
1 x M.2 socket for storage/4G LTE/5G modules
1 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE module
Support operating temperature from-5 to 55 Celsius degree
Support+12V to 24VDC input; support ATX power mode

This product is listed in Embedded Computers, Digital Signage, Industrial Automation

Specifications

CPU Support	Onboard Intel Celeron processor 6305E Support Intel Core i7/i5 Tiger Lake-UP3 processors with different SKUs
Main Memory	1 x DDR4 3200 SO-DIMM socket, support up to 32GB
Display Option	4 x HDMI ports, support 4K@30Hz

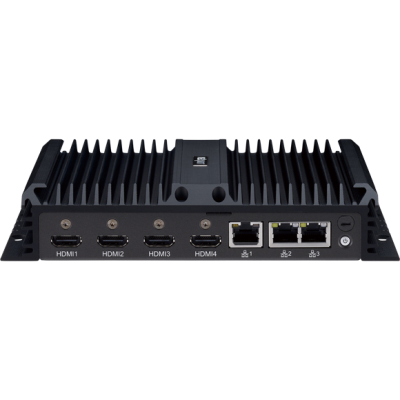

I/O Interface-Front	ATX power on/off switch 4 x HDMI port, support 4K@30Hz 2 x Intel® I211 and 1 x Intel® WGI219LM GbE LAN ports; support WoL, teaming and PXE 1 x Antenna hole
I/O interface - Rear	3 x USB 3.0 ports (900mA per each) 1 x USB 2.0 (500mA per each) 2 x DB9 for COM1 & COM2 - COM1: RS232/422/485 auto flow control - COM2: full RS232 signal 1 x 2-pin remote power on/off switch 2 x Antenna hole Support+12V to 24V DC input
I/O Interface – Internal	4 x GPI and 4 x GPO (programmable to GPI or GPO)
Expansion Slot	1 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE/mSATA 1 x M.2, support Key B & B+M module for optional 4G LTE/5G/SATA storage (SATA/PCIe/USB, 2242/3042)
Power Requirements	Power input: +12 to +24V DC 1 x Optional 24V, 60W power adapter
Support OS	Windows® 10 Enterprise 64-bit Linux Kernel 4.19
Dimensions	198.8mm (W) x 150.4mm (D) x 37.7mm (H) with wall mount bracket
Construction	Aluminum and metal chassis with fanless design
Environment	Operating temperature: Ambient with air flow: -5°C to 55°C (Celeron), 0°C to 50°C (Core i5/i7)(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C to 80°C Relative humidity: 10% to 95% (non-condensing) Shock protection: - M.2/mSATA: 50G, half sine, 11ms, IEC60068-2-27 Vibration protection with mSATA & M.2 condition: - Random: 2Grms@5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6
Certifications	CE FCC Class A

Downloads

Datasheet
