Brand: Nexcom

nROK6231 Atom Fanless Vehicle Rail Computer

In stock
SKU:
nROK6231-xx

Intel Atom x7433RE Fanless Rolling Stock Computer with EN50155

Key Features:

  • Intel Atom processor quad-core x7433RE, 1.5GHz

  • Eight SIM cards + four WWAN modules support

  • Built-in u-blox-M9N GPS

  • Built-in CAN FD

  • 1 x External storage (compatible with 15mm disk)

  • EN 50155, class OT4 conformity

  • 3 x M.2 + 2 x mPCIe socket expansion

  • Wide voltage input 24 VDC

  • 1 x DB9 for 1 x Mic-in, 1 x Line-out, 1 x Line-In

  • Three video outputs, VGA, HDMI, and DP


Enquire Now
Enquire Now

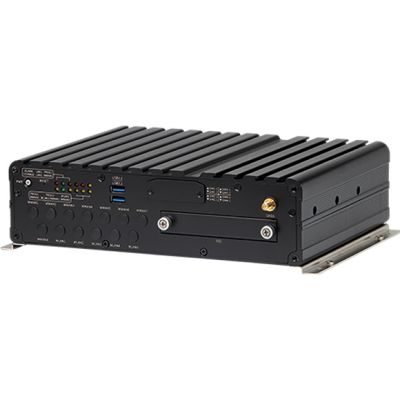

main product photo
We build to order

The nROK 6231, with Intel Core quad-core processor x7433RE, specifically complies with stringent EN50155 standards in rugged, fanless, and compact mechanisms. nROK 6231 provides complete communication capability between the train and computer with a built-in CAN FD interface. nROK 6231 features rich WLAN and WWAN wireless connectivity. With dual SIM cards per modem support, nROK 6231 allows eight SIM cards to back up each other for better connectivity quality or extra bandwidth by software. In addition, eight SIM cards and four WWAN modules architecture can increase the bandwidth for a faster data transmission speed. Equipped with intelligent power management, nROK 6231 can be waked on by ignition, RTC timer, or SMS message remotely. By integrating the variety of I/O ports, 3 x M.2, 2 x mPCIe sockets expansibility, and up to three screens via VGA, HDMI, and DP connections, nROK 6231 keeps the flexibility to meet the demand for different rolling stock applications, such as infotainment, dispatching system, cellular/wireless network connectivity, and video surveillance. The design of mini-PCIe slots x 2 can solve the potential request from the market when needed.


This product is listed in Transport, Railway Computers
Specifications

CPU

  • Intel Atom® processor x7433RE, 1.5GHz, 9W, 4-core

Memory

  • 1 x 262-pin DDR5 SO-DIMM socket support 4800MHz up to 16GB, default 8GB

Video Output

  • 1 x VGA up to 1920 x 1200 @60Hz

  • 1 x HDMI 2.0 up to 4096 x 2160 @60Hz

  • 1 x DP up to 4096 x 2160 @60Hz

Storage

  • 1 x 2.5” SATA 3.0 external SSD (compatible with 15mm drive)

  • 1 x mSATA (occupy one mPCIe slot)

Expansion

  • 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM

  • 1 x Full size mini-PCIe socket (USB 2.0, SATA, PCIe 3.0) for mSATA (default), BIOS select (USB 2.0) for LTE with 2 x external Nano-SIM, BOM option (USB 2.0, PCIe 3.0) for WLAN

  • 1 x M.2 2230 Key E (PCIe 3.0 x 1, USB 2.0), BOM optional mPCIe (PCIe 3.0 x 1, USB2.0) for Hailo module

  • 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0) for WiFi, BOM option M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM

GNSS and Onboard Sensor

  • 1 x Default u-blox NEO-M9N GNSS for GPS/Glonass/QZSS/Galileo/ Beidou

  • G Sensor (3-axis, 10-bit resolution)

LAN and Power over Ethernet

  • 2-Port LAN, 10/100/1000/2500 Mbps I226-IT Ethernet Controller

Security

  • TPM 2.0: Infineon SLB9670VQ2.0

I/O Interface-Front

  • 12 x LED indicators (including 2 x programmable LED)

  • 8 x Externally accessible SIM card sockets with cover

  • 1 x 2.5" removable SSD tray (removable, 15mm)

  • 1 x Reset button

  • 1 x Power button

  • 2 x USB 3.2 (Gen 2) type A

  • 14 x SMA antenna

I/O Interface-Rear

  • 1 x Circle type DC input with ignition
    - 24 VDC (9~36 VDC), non-isolation

  • 1 x M12 with two USB 2.0

  • 2 x M12 X-coded LAN port, 10/100/1000/2500 Mbps

  • 1 x DB9 (AUDIO), female for 1 x Mic-in, 1 x Line-out, 1 x Line-In

  • 1 x VGA, 1 x HDMI 2.0, 1 x DP

  • 1 x DB9 (COM) full RS232 (isolation)

  • 2 x DB9 for RS232/RS422/RS485 Full (all w/ isolation)

  • 1 x 18-pin terminal block
    - 1 x CAN FD
    - 4 x DI with isolation
    - 4 x DO with isolation
    - 1 x GNSS Speed/Direction
    - Vin, GND for GPIO

Power Management & Software Support

  • Power input 24 VDC w/o isolation

  • Selectable boot-up & shut-down voltage for low power protection by software

  • Setting 8-level power on/off delay time by software

  • Support S3/S4 suspend mode

  • 10~255 seconds WDT support, setup by software

  • SDK (Windows/Linux) including utility and sample code

Operating System

  • Windows 10, 11 (64-bit)

  • Linux 4.x

Dimensions

  • 260mm (W) x 196mm (D) x 70mm (H) (10.24" x 7.79" x 2.75")

Weight

  • 2.8kg

Environment

  • Operating temperatures
    - EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes (w/ industrial SSD) with air flow

  • Storage temperatures: -40°C to 85°C

  • Relative humidity: 10% to 90% (non-condensing)

  • Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)

  • Vibration
    - IEC 60068-2-64, 2G for SSD
    - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4
    - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24

  • Shock
    - Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g

Standards/Certifications

  • CE

  • FCC Class A

  • EN 50155: 2017
    - Ambient temperature EN 50155, Class OT4 (-40~70°C), 85°C for 10 minutes
    - Interruptions of voltage supply class S1
    - Supply change over class C1, C2
    - EMC EN 50121-3-2: 2016+A1: 2019
    - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
    - Shock and vibration IEC 61373 Class B
    - Protective coating class PC1 (PC2, by request)
    - EN 45545-2:2013+A1:2015 (PCB)



Downloads
pdf
Datasheet
Ordering Information

nROK 6231-A (P/N: 10A00623100X0)

Intel Atom® processor x7433RE CPU, 8GB DDR5 SO-DIMM, DC input 24 VDC w/o isolation, 1 x VGA, 1 x HDMI, 1 x DP, 2 x LAN, 2 x selectable RS232/422/485 Full, 1 x RS232 Full, 8 x GPIO, 2 x USB 3.2, 2 x USB 2.0



nROK 6231-AI (P/N: 10A00623101X0)

Intel Atom® processor x7433RE CPU, 8GB DDR5 SO-DIMM, DC input 24 VDC w/ isolation, 1 x VGA, 1 x HDMI, 1 x DP, 2 x LAN, 2 x selectable RS232/422/485 Full, 1 x RS232 Full, 8 x GPIO, 2 x USB 3.2, 2 x USB 2.0



nROK 6231-FI (P/N: 10A00623102X0)

Intel Atom® processor x7433RE CPU, 8GB DDR5 SO-DIMM, DC input 110 VDC w/ isolation, 1 x VGA, 1 x HDMI, 1 x DP, 2 x LAN, 2 x selectable RS232/422/485 Full, 1 x RS232 Full, 8 x GPIO, 2 x USB 3.2, 2 x USB 2.0
