Brand: Nexcom

nROK7270 Fanless Vehicle PC 12/13th Gen CPU

In stock
SKU:
nROK 7270-A

Introducing the nROK 7270: a fanless rolling stock computer with a powerful Intel Core CPU, DDR5 memory, 5G/Wi-Fi, PoE support, and military-standard durability.

Key Features:

  • Powered by 12/13th Gen Intel Core CPU

  • Fanless, compact and rugged design

  • Designed with DDR5, excellent memory bandwidth, lower latency

  • 2 x 2.5” SSD for data integrity (compatible with 15mm disk)

  • 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support

  • Two video outputs, one VGA and one HDMI

  • 4 x Independent 10/100/1000/2500 Mbps PoE 802.3 af/at, total 60W (nROK 7270-AC4/nROK 7270-AC4-C8S)

  • Additional 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 60W (nROK 7270-AC4-C8S)

  • Military standard for anti-vibration/shock

  • EN 50155, class OT3 conformity


Enquire Now
Enquire Now

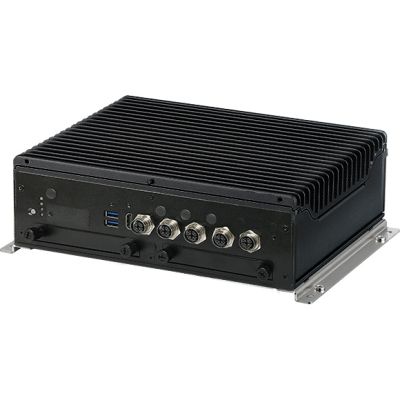

main product photo
We build to order

NEXCOM's nROK 7270 system is designed to enhance the operational efficiency of public transportation and services. It is powered by the Intel® 12/13th Gen FCLGA1700 socket-type CPU and offers 4/12-port 802.3af/at PoE, providing a comprehensive solution with robust computing capabilities.

With support for dual SIM cards per modem, it ensures better connectivity quality through software-based backup for two SIM cards. Additionally, the inclusion of RAID 0 and 1 ensures the safety of data stored on the 2 x external SSDs.

Thanks to its daughter board expansion design, the nROK 7270 offers optional features such as an additional 1 x mini-PCIe slot (BOM optional for M.2 Key E) and 2 x M.2 Key B slots. It also provides flexibility with options like an 8-port 1Gbps Ethernet Switch GbE with PoE 802.3af/at (supporting a maximum of 60W) or 2-port 10GbE M12 X-coded. This versatility makes the nROK 7270 suitable for various rolling stock applications, including infotainment, transportation cellular routers, video servers, and video surveillance.

Key Features:

  • Powered by 12/13th Gen Intel Core CPU

  • Fanless, compact and rugged design



  • Designed with DDR5, excellent memory bandwidth, lower latency



  • 2 x 2.5” SSD for data integrity (compatible with 15mm disk)



  • 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support

  • Two video outputs, one VGA and one HDMI



  • 4 x Independent 10/100/1000/2500 Mbps PoE 802.3 af/at, total 60W (nROK 7270-AC4/nROK 7270-AC4-C8S)



  • Additional 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 60W (nROK 7270-AC4-C8S)



  • Military standard for anti-vibration/shock



  • EN 50155, class OT3 conformity


This product is listed in Transport, Railway Computers
Specifications
CPU

  • Intel® 12/13th Gen Core™ CPU (65W/35W), Chipset: Intel R680E, Graphics: Intel® UHD Graphics770,1.55GHz
Memory

  • 2 x 262-pin SO-DIMM, DDR5 4800MHz

  • 64GB in max., ECC & dual-channel support
Video Output

  • 1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz

  • 1 x VGA, up to 1920 x 1200@60Hz
Storage

  • 2 x 2.5” SATA 3.0 external SSD (15mm height, removable)

  • 1 x mSATA (occupied mini-PCIe slot)

  • 2 x M.2 Key B (occupied M.2 socket)

  • 1 x microSD card slot, SDXC v3.01
Expansion

  • 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0)

  • 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2, SATA 3.0) for LTE/5G NR module with 1 x external dual nano-SIMs

  • 1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0 x2), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0, PCIe 3.0)

  • Additional expansion for nROK 7270-A-H:
    - 1 x Full-size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0)
    - 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
GNSS and Onboard Sensor

  • 1 x Default U-blox NEO-M9N GNSS module for GPS+QZSS /Glonass/Galileo/Beidou

  • 1 x 3D accelerometer and 3D gyroscope
LAN and Power over Ethernet

  • nROK 7270-AC4/nROK 7270-AC4-C8S:
    - 1-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)
    - 4-Port Independent LAN M12 X-coded, 10/100/1000/2500 Mbps I226-IT GbE, PoE 802.3af/at, max. 60W (non-isolation)

  • nROK 7270-A/nROK 7270-A-H:
    - 2-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)

  • Additional PoE for nROK 7270-AC4-C8S:
    - 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3 af/at, max. 60W (isolation)
Security

  • TPM 2.0: InfineonSLB9665TT2.0FW5.62
I/O Interface-Front

  • 4 x LED indicators (storage/WWAN/WLAN/programmable)

  • 1 x HDMI 2.0a/b

  • 2 x USB 3.2 Gen 2 type A (5V/0.9A)

  • 2 x Externally accessible dual nano-SIM card sockets with cover

  • 1 x microSD card slot with cover

  • 2 x 2.5” removable SSD tray

  • 1 x Reset button

  • 1 x Power button

  • nROK 7270-AC4/nROK 7270-AC4-C8S:
    - 1 x M12 X-coded LAN port
    - 4 x M12 X-coded PoE 802.3af/at

  • nROK 7270-A/nROK 7270-A-H:
    - 2 x M12 X-coded LAN port

  • 1 x Fan power connector

  • 1 x SMA connector for GNSS

  • 4 x SMA connector holes for WWAN
I/O Interface-Rear

  • 1 x VGA

  • 1 x M12 A-coded 8-pin for 2 x USB 2.0

  • 1 x M8 (Audio) for 1 x Mic-in, 1 x Line-out

  • 2 x DB9 (COM1/2) for full RS232/422/485 (isolation)

  • 1 x DB15 (CAN/DIO)
    - 2 x Isolated CAN FD, compatible with CAN2.0A/2.0B
    - 4 x DI and 4 x DO (isolation), power in source for DIO isolation, 14~48VDC

  • 1 x M12 K-coded 5-pin for power input

  • 1 x Connector 2-pin for ignition input

  • 4 x SMA connector holes for WWAN

  • 2 x RP-SMA connector holes for WLAN

  • 8 x PoE 802.3af/at, M12 X-coded (nROK 7270-AC4-C8S)

  • 2 x Externally accessible dual nano-SIM card sockets with cover, 8 x SMA connector holes for WWAN, and 2 x RP-SMA connector holes for WLAN (nROK 7270-A-H)
Power Management & Software Support

  • Power input 24VDC/36VDC (14~48VDC) w/o isolation

  • Selectable boot-up & shut-down voltage for low power protection by software

  • Setting 8-level power on/off delay time by software

  • Support S3/S4 suspend mode

  • 10~255 seconds WDT support, setup by software

  • SDK (Windows/Linux) including utility and sample code
Operating System

  • Windows 11/Windows 10/Linux
Dimensions

  • 260 x 210 x 80 (W x D x H) (mm)
Weight

  • nROK 7270-AC4: 6.3kg (TBD)

  • nROK 7270-A: (TBD)

  • nROK 7270-AC4-C8S: (TBD)

  • nROK 7270-A-H: (TBD)
Environment

  • Operating temperatures
    - EN 50155, class OT3 (-35°C ~70°C), 85°C for 10 minutes (w/35W TDP CPU, 60W PoE, 8GB memory, industrial SSD) with airflow

  • Storage temperatures: -40°C to 80°C

  • Relative humidity: 90% (non-condensing)
    - Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)

  • Vibration (SSD)
    - Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810H, Method 514.8E, Procedure 1,

  • Category 24, minimum integrity test

  • Shock (SSD)
    - Operating: MIL-STD-810H, Method 516.8, Procedure I,     functional shock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Certifications

  • CE/UKCA/FCC Class A

  • EN 50155: 2017
    - Ambient temperature EN 50155, Class OT3 (-35°C ~70°C), 85°C for 10 minutes
    - Interruptions of voltage supply class S1
    - Supply change over class C1
    - EMC EN 50121-1: 2017, EN 50121-3-2: 2016+A1: 2019
    - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
    - Shock and vibration IEC 61373 Class B
    - Protective coating class PC1 (PC2, by request)

  • EN 45545-2: 2020 (PCB)
Downloads
pdf
Datasheet
pdf
User Manual*
Lock You have to Login or Register to download this file
Ordering Information

nROK 7270-AC4 (P/N: 10A00727000X0)
System bare-bone. Intel® 12/13th Gen CPU with DDR5, DC input 24/36V (w/o isolation), 1 x LAN M12 X-coded, 4 x PoE M12
X-coded, 2 x CAN FD

nROK 7270-A (P/N: 10A00727001X0)
System bare-bone. Intel® 12/13th Gen CPU with DDR5, DC input 24/36V (w/o isolation), 2 x LAN M12 X-coded, 2 x CAN FD

(Optional) VIOD-WWB4S-01 5G/Wi-Fi expansion board kit for nROK 7270 (P/N: 88A00727000X0)
Additional expansion:
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0)
- 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 1 x external dual nano-SIMs

(Optional) VIOD-L1M8P-01 PoE expansion board kit for nROK 7270 (P/N: 88A00727001X0)
Additional PoE port:
- 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3 af/at, max. 60W (isolation)

(Optional) VIOD-LTM2-W01 10GbE expansion board kit for nROK 7270 (P/N: 88A00727002X0)
Additional 10GbE port and expansion:
- 2-port 10GbE M12 X-coded
- 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
