Brand: Nexcom

nROK7271 Fanless Vehicle PC 12/13th Gen CPU

In stock
SKU:
nROK 7271-WI

Introducing nROK 7271 (Preliminary): A fanless, rugged rolling stock computer with 12/13th Gen Intel® Core™ CPU, DDR5, 5G/Wi-Fi, and PoE support, designed for industrial computing.

Key Features:

  • Powered by 12/13th Gen Intel® Core™ CPU
  • Fanless, compact and rugged design
  • Designed with DDR5, excellent memory bandwidth, lower latency
  • 2 x 2.5” SSD for data integrity (compatible with 15mm disk)
  • 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support
  • 4 x Independent 10/100/1000/2500 Mbps PoE 802.3af/at, total 60W (nROK 7271-WIC4) / 30W (nROK 7271-WIC4-C8S)
  • Additional 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 30W (nROK7271-WIC4-C8S)
  • EN 50155, class OT3 conformity
  • Wide voltage input 24~110VDC (w/ isolation)
  • Optional up to 3-sec protection against temporary voltage dips

Enquire Now
Enquire Now

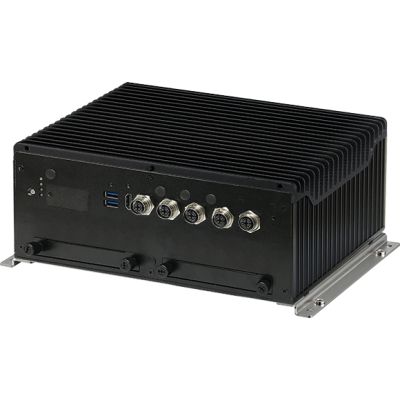

main product photo
We build to order

The NEXCOM system nROK 7271 is designed to enhance the operational efficiency of public transportation and services. It is powered by an Intel® 12/13th Gen FCLGA1700 socket-type CPU and offers a versatile solution with 4/12-port 802.3 af/at PoE, delivering robust computing capabilities. Support for dual SIM cards per modem ensures improved connectivity quality through software-based backup of two SIM cards. Additionally, including RAID 0 and 1 guarantees the safety of data stored on the 2 x external SSD drives.

What sets the nROK 7271 apart is its ability to provide power isolation for voltages ranging from 24V to 110VDC. It also offers optional 3-second protection against temporary voltage dips, a critical feature for scenarios where fluctuations in input voltage could potentially disrupt equipment operation.

With a daughter board expansion design, it offers the option for an additional 1 x mini-PCIe slot (BOM optional for M.2 Key E) and 2 x M.2 Key B slots. Moreover, it provides flexibility with options for an 8-port 1Gbps Ethernet Switch GbE with PoE 802.3af/at support (max. 30W), or a 2-port 10GbE M12 X-coded configuration. This versatility makes the nROK 7271 well-suited to meet various demands in rolling stock applications, including infotainment, transportation cellular routers, video servers, and video surveillance systems.

Key Features:

  • Powered by 12/13th Gen Intel® Core™ CPU
  • Fanless, compact and rugged design
  • Designed with DDR5, excellent memory bandwidth, lower latency
  • 2 x 2.5” SSD for data integrity (compatible with 15mm disk)
  • 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support
  • 4 x Independent 10/100/1000/2500 Mbps PoE 802.3af/at, total 60W (nROK 7271-WIC4) / 30W (nROK 7271-WIC4-C8S)
  • Additional 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 30W (nROK 7271-WIC4-C8S)
  • EN 50155, class OT3 conformity
  • Wide voltage input 24~110VDC (w/ isolation)
  • Optional up to 3-sec protection against temporary voltage dips

This product is listed in Transport, Railway Computers
Specifications
CPU
  • Intel® 12/13th Gen Core™ CPU (65W/35W), Chipset: Intel R680E, Graphics: Intel® UHDGraphics770,1.55GHz
Memory
  • 2 x 262-pin SO-DIMM, DDR5 4800MHz
  • 64GB in max., ECC & dual-channel support
Video Output
  • 1 x HDMI 2.0a/b, up to 3840 x 2160@60Hz
  • 1 x VGA, up to 1920 x 1200@60Hz
Storage
  • 2 x 2.5” SATA 3.0 external SSD (15mm height, removable)
  • 1 x mSATA (occupied mini-PCIe slot)
  • 2 x M.2 Key B (occupied M.2 socket)
  • 1 x microSD card slot, SDXC v3.01
Expansion
  • 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0)
  • 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2, SATA 3.0) for LTE/5G NR module with 1 x external dual nano-SIMs
  • 1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0 x2), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0, PCIe 3.0)
  • Additional expansion for nROK 7271-WI-H:
    - 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0)
    - 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
GNSS and Onboard Sensor
  • 1 x Default U-blox NEO-M9N GNSS module for GPS+QZSS /Glonass/Galileo/Beidou
  • 1 x 3D accelerometer and 3D gyroscope
LAN and Power over Ethernet
  • nROK 7271-WIC4/nROK 7271-WIC4-C8S:
    - 1-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)
    - 4-port Independent LAN M12 X-coded, 10/100/1000/2500 Mbps I226-IT GbE, PoE 802.3af/at, max. 60W (nROK 7271-WIC4)/30W (nROK 7271-WIC4-C8S) (non-isolation)
  • nROK 7271-WI/nROK 7271-WI-H:
    - 2-port LAN M12 X-coded, 10/100/1000/2500 Mbps Intel® I226 GbE (support WOL)
  • Additional PoE for nROK 7271-WIC4-C8S:
    - 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3af/at, max. 30W (isolation)
Security
  • TPM 2.0: InfineonSLB9665TT2.0FW5.62
I/O Interface-Front
  • 4 x LED indicators (storage/WWAN/WLAN/programmable)
  • 1 x HDMI 2.0a/b
  • 2 x USB 3.2 Gen 2 type A (5V/0.9A)
  • 2 x Externally accessible dual nano-SIM card sockets with cover
  • 1 x microSD card slot with cover
  • 2 x 2.5” removable SSD tray
  • 1 x Reset button
  • 1 x Power button
  • nROK 7271-WIC4/nROK 7271-WIC4-C8S:
    - 1 x M12 X-coded LAN port
    - 4 x M12 X-coded PoE 802.3af/at
  • nROK 7271-WI/nROK 7271-WI-H:
    - 2 x M12 X-coded LAN port
  • 1 x Fan power connector
  • 1 x SMA connector for GNSS
  • 4 x SMA connector holes for WWAN
  • 8 x PoE 802.3af/at, M12 X-coded (nROK 7271-WIC4-C8S)
  • 2 x Externally accessible dual nano-SIM card sockets with cover, 8 x SMA connector holes for WWAN, and 2 x RP-SMA connector holes for WLAN (nROK 7271-WI-H)
I/O Interface-Rear
  • 1 x VGA
  • 1 x M12 A-coded 8-pin for 2 x USB 2.0
  • 1 x M8 (AUDIO) for 1 x Mic-in, 1 x Line-out
  • 2 x DB9 (COM1/2) for full RS232/422/485 (isolation)
  • 1 x DB15 (CAN/DIO)
    - 2 x Isolated CAN FD, compatible with CAN2.0A/2.0B
    - 4 x DI and 4 x DO (isolation), power in source for DIO isolation, 14~48VDC
  • 1 x M12 K-coded 5-pin for power input
  • 1 x Connector 2-pin for ignition input
  • 4 x SMA connector holes for WWAN
  • 2 x RP-SMA connector holes for WLAN
Power Management & Software Support
  • Power input 24~110VDC w/ isolation
  • Optional 2.2~3 sec (170W~120W) protection against temporary voltage dips (occupied rear side expansion)
  • Selectable boot-up & shut-down voltage for low power protection by software
  • Setting 8-level power on/off delay time by software
  • Support S3/S4 suspend mode
  • 10~255 seconds WDT support, setup by software
  • SDK (Windows/Linux) including utility and sample code
Operating System
  • Windows 11/Windows 10/Linux
Dimensions
  • 260 x 210 x 110 (W x D x H) (mm)
Weight
  • nROK 7271-WIC4: 7.2kg (TBD)
  • nROK 7271-WI: (TBD)
  • nROK 7271-WIC4-C8S: (TBD)
  • nROK 7271-WI-H: (TBD)
Environment
  • Operating temperatures
    - EN 50155, class OT3 (-35°C ~70°C), 85°C for 10 minutes (w/ 35W TDP CPU, 60W PoE, 8GB memory, industrial SSD) with air flow
  • Storage temperatures: -40°C to 80°C
  • Relative humidity: 90% (non-condensing)
  • Vibration (random)
    - 2g@5~500 Hz (in operation, SSD)
  • Vibration (SSD)
    - Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure
    - Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
  • Shock (SSD)
    - Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
    - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Certifications
  • CE/UKCA/FCC Class A
  • EN 50155: 2017
    - Ambient temperature EN 50155, Class OT3 (-35°C ~70°C), 85°C for 10 minutes
    - Interruptions of voltage supply class S1
    - Supply change over class C1
    - EMC EN 50121-1: 2017, EN 50121-3-2: 2016+A1: 2019
    - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
    - Shock and vibration IEC 61373 Class B
    - Protective coating class PC1 (PC2, by request)
  • EN 45545-2: 2020 (PCB)
Downloads
pdf
Datasheet
pdf
User Manual*
Lock You have to Login or Register to download this file
Ordering Information

nROK 7271-WIC4 (P/N: 10A00727100X0)
System bare-bone. Intel® 12/13th Gen CPU with DDR5, DC input 24~110VDC (w/ isolation), 1 x LAN M12 X-coded, 4 x PoE M12 X-coded, 2 x CAN FD

nROK 7271-WI (P/N: 10A00727101X0)
System bare-bone. Intel® 12/13th Gen CPU with DDR5, DC input 24~110VDC (w/ isolation), 2 x LAN M12 X-coded, 2 x CAN FD

(Optional) VIOB-CAP-01 Supercap board kit for nROK 7271 (P/N: 88A00727103X0)
Supercap board for protection against temporary voltage dips

(Optional) VIOD-WWB4S-01 5G/Wi-Fi expansion board kit for nROK 7271 (P/N: 88A00727100X0)
Additional expansion:
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0)
- 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 1 x external dual nano-SIMs

(Optional) VIOD-L1M8P-01 PoE expansion board kit for nROK 7271 (P/N: 88A00727101X0)
Additional PoE port:
- 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3 af/at, max. 30W (w/ nROK 7271-WIC4)/60W (w/ nROK 7271-WI) (isolation)

(Optional) VIOD-LTM2-W01 10GbE expansion board kit for nROK 7271 (P/N: 88A00727102X0)
Additional 10GbE port and expansion:
- 2-port 10GbE M12 X-coded
- 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
- 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
