Brand: Avalue Technology Inc.

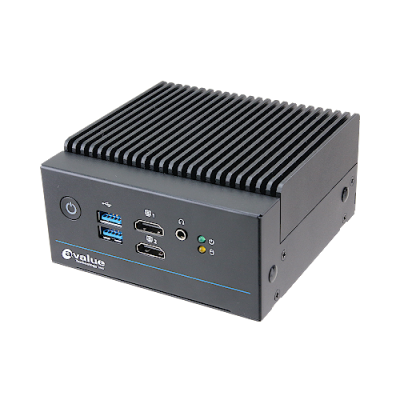

NUC-APL Fanless NUC System J3455/N3350
In stock
SKU:
NUC-APL-3x-B1-1R
Intel Apollo Lake Celeron Processor J3455/N3350 Up to 8GB DDR3
Key Features:
- Onboard Intel Celeron Processor J3455/N3350
- Single DRAM Socket, Max. Up to 8GB DDR3 1866MHz
- Rich I/O, 2 x COM, 2 x LAN, 4 x USB3.0, 1 x Audio, 2 x Antennal Mounting
- Triple Display, 2 x HDMI, 1 x DP (DVI-I/VGA Factory Option)
- Expansion Slot, M.2 Key-B, M.2 Key-E
- Fanless Operating from 0°C ~ 60°C
- DC Power Input +12V
- Compact Size, 115mm x 111mm x 58mm
- Supports VESA/Din-Rail Kit
- TPM 2.0 (Factory Option)
Enquire Now
Enquire Now
The NUC-APL series is a fanless system based on Intel's Next Unit of Computing (NUC). The NUC-APL series is a powerful and small compact PC with a powerful processor, fast memory, and huge storage that rivals the most recent full-size desktop PCs. The Intel® Celeron® Processor J3455/N3350 powers the NUC-APL. On the back, it has twin HDMI, one DP, several USB 3.0 connections, and two COM ports for use in a variety of applications and scenarios. The NUC-APL, which uses Intel HD graphics, can handle HD media and more demanding applications than standard low-power PCs. The TDP is less than 22 watts despite the excellent performance.
Key Features:
- Onboard Intel Celeron Processor J3455/N3350
- Single DRAM Socket, Max. Up to 8GB DDR3 1866MHz
- Rich I/O, 2 x COM, 2 x LAN, 4 x USB3.0, 1 x Audio, 2 x Antennal Mounting
- Triple Display, 2 x HDMI, 1 x DP (DVI-I/VGA Factory Option)
- Expansion Slot, M.2 Key-B, M.2 Key-E
- Fanless Operating from 0°C ~ 60°C
- DC Power Input +12V
- Compact Size, 115mm x 111mm x 58mm
- Supports VESA/Din-Rail Kit
- TPM 2.0 (Factory Option)
| -System Information- | |
| Processor | Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz) Intel® Celeron® Processor N3350 (2M Cache, up to 2.4 GHz) |
| System Memory | 1 x 204-pin SO-DIMM Socket, Max, Up to 8GB DDR3L 1866MHz |
| BIOS Information | AMI BIOS, 128Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1 sec. ~ 65535sec and 1sec. or 1min./step |
| H/W Status Monitor | Monitoring CPU Temperature, Voltage with Auto Throttling Control |
| SBC | NCM-APL |
| Expansion | |
| Expansion | 1 x M.2 (Key-B, 2242/3042, PCIe, SATA, USB 3.0, USB 2.0, SIM Slot) 1 x M.2 (Key-E, 2230, PCIe, USB2.0) |
| Storage | |
| Storage | 1 x 2.5” Drive Bay (7 or 9.5mm) 1 x M.2 (Key-B,2242, SATA) |
| I/O | |
| USB Port | 4 x USB 3.0 (5Gbps) |
| COM Port | 1 x RS-232/422/485 (BIOS&Cable) 1 x RS-232 |
| Antenna | 2 x Antenna Mounting with Dust Cover |
| System Control | |
| LED Indicator | 1 x Power on/off LED & Storage Access LED on front side |
| Display | |
| Graphic Chipset | Intel® HD Graphics 500 |
| Spec. & Resolution | 2 x HDMI 1.4b: Max. Resolution 3840x2160@30Hz 1 x DP (DVI-I/VGA Factory Option): Max. Resolution 1920 x 1080@60Hz |
| Multiple Display | Triple Display |
| Audio | |
| Audio Codec | Realtek ALC888S |
| Audio Interface | 1 x Audio Jack (Mic-in + Line-Out Combo) |
| Certifications | |
| Certification Information | CE, FCC Class A, UKCA |
| Ethernet | |
| LAN Chipset | Realtek RTL8111E Gigabit Ethernet |
| Ethernet Interface | 10/100/1000 Base-Tx Gigabit Ethernet Compatible |
| LAN Port | 2 x RJ45 |
| Power Requirement | |
| DC Input | +12V |
| DC Input Connector | Lockable DC Jack |
| ACPI | Single Power ATX Support S0, S3, S4, S5 ACPI 5.0 Compliant |
| Power Mode | AT/ATX (ATX is the default setting) |
| Adapter | Input: 100 ~ 240Vdc/ 50 ~ 60Hz Output: 12V/5A AC-DC 60W Adapter |
| Mechanical & Environmental | |
| Operating Temperature | With extended temperature peripherals -10°C ~ 50°C (14°F ~ 122°F) with 0.2m/s air flow With extended temperature peripherals -10°C ~ 60°C (14°F ~ 140°F) with 0.5m/s air flow |
| Storage Temperature | -30~70C° (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 115mm x 111mm x 58mm (4.53” x 4,37” x 2.28”) |
| Weight | 0.85KG (1.87lbs) |
| Vibration Test | With SSD: 5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis |
| Shock Test | With SDD : 55G, IEC 60068-2-27, Half Sine, 11ms, Z Axis |
| Mounting Kit | VESA/Din Rail Kit |
| Drop | ISTA 2A, IEC-60068-2-32 Test: Ed, 1 Corner, 3 Edges, 6 Faces |
| Construction | Aluminum + Metal |
| Software Support | |
| OS Information | Win 10, Linux |
| Ordering Information | |
| Ordering Information | NUC-APL-34-B1-1R Intel® Celeron® Processor J3455 Fanless NUC System NUC-APL-33-B1-1R Intel® Celeron® Processor N3350 Fanless NUC System E1702031831R Australia Power Cord E1702031833R USA Power Cord E1702031834R Japan Power Cord E170P060380R UK Power Cord E1702031000R EU Power Cord |
