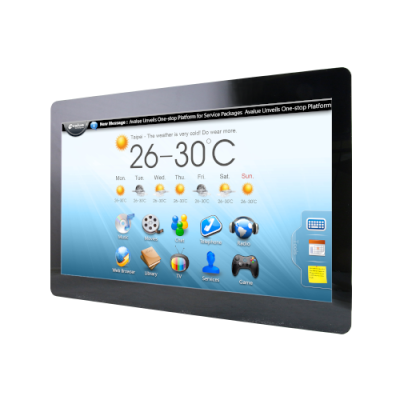

OFT-15W04 15.6" Open Frame Tablet
15.6" Open Frame Tablet
Key Features:
- Intel Celeron Processor J3455
- 4GB RAM
- 32GB eMMC
- Projective Capacitive Touch
- 10/100/1000 Ethernet
- M.2 B-Key(3042) connector socket
- 802.11 a/b/g/n/ac Wireless LAN
- Windows 10 supported
- DC 12~24V Input
The OFT series consists of open-frame multi-touch tablet PCs which use low-power Intel Celeron J3455 processor. With TFT Full HD LCD displays available in sizes 10”, 15” and 21”, you can choose the right fit for your application. Furthermore, the OFT series’ full-flat thin bezel design with projected capacitive technology makes them extremely suitable for any application that requires touch control. With a full-flat display panel that makes cleaning easy, it minimizes the trouble of cleaning the panel especially when used on a kiosk. Supporting Windows 10 and Ubuntu 20.04, it can integrate most software. Users can install the operating system according to their specific requirements, providing the greatest flexibility in use. The OFT series is ideal for various industrial environments, medical fields and retail markets. Its wide range of applications includes kiosks, vending machines, control cabinets and smart homes.
Key Features:
- Intel Celeron Processor J3455
- 4GB RAM
- 32GB eMMC
- Projective Capacitive Touch
- 10/100/1000 Ethernet
- M.2 B-Key(3042) connector socket
- 802.11 a/b/g/n/ac Wireless LAN
- Windows 10 supported
- DC 12~24V Input
| -System Information- | |
| Processor | Intel Celeron J3455 Quad Core CPU 1.50 GHz |
| System Memory | DDR3L 1866 4GB RAM SO-DIMM |
| Storage | |
| Storage | 32GB eMMC on board |
| Panel | |
| LCD Size | 15.6" |
| LCD Panel | TFT LCD |
| Display Type | Full HD |
| Resolution | 1920x1080 |
| Pixel pitch | 179.25 (H) X 179.25 (V) (um) |
| Luminance | 220 cd/m² |
| Contrast ratio | 800 |
| Viewing angle | 85 (U), 85 (D), 85 (L), 85 ( R) |
| Response time | 30ms |
| Backlight | LED |
| Touch Type | Projective Capacitive |
| Touch Light Transmission | 85% |
| I/O | |
| External I/O Connector | 1 x Power jack 1 x HDMI 2 x USB 3.0 Type A 1 x RJ45 1 x Headphone Jack 1 x Power button |
| Internal I/O Connector | 1 x Micro USB 1 x USB interface , 1 x DMIC interface 1 x USB touch interface 1 x M.2 B-Key(3042) 1 x M.2 E-Key(2230) 1 x touch button control(power/vol/brightness) 1 x Power interface (12~24V) 1 x eDP 1 x AMIC interface 1 x Speaker interface 1 x JSEN1 interface (I2C x2) 1 x RS232 (Tx/Rx/Rts/Cts) interface 1 x RS232 (Tx/Rx/Rts/Cts) , RS485 (Tx/Rx/Rts/Cts) 1 x JGPIO1 (GPIO 16bit) 1 x RTC Battery interface 1 x Micro SIM Card socket for LTE module 1 x Micro SD slot |
| Wireless Communication | |
| WLAN | 802.11 a/b/g/n/ac |
| Display | |
| Multiple Display | eDP + HDMI |
| Certifications | |
| Certification Information | CE, FCC Class A |
| Mechanical & Environmental | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 384 x 254 x 47.5 mm |
| Weight | 2.2kg |
| Power Requirement | DC 12~24V Input |
| Power Mode | DC Jack, DC input 4pin header |
| Software Support | |
| OS Information | 2019 Windows 10(64 bit) |
| Ordering Information | |
| Ordering Information | OFT-15W04-3411-A1R_OFT-15W04-4G_32G-Win10 |
