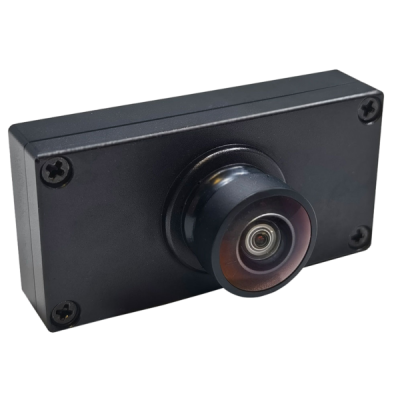

'Owl' IP65 Maxim GMSL 2 2.3MP Imaging Camera
IP65 Maxim GMSL 2 Camera
Key Features:
- ON Semiconductor CMOS Image Sensor AR0234CS
- Color Sensor
- GMSL2 Serializer
- GMSL2 Serial Coax Interface with PoC
- Certification FCC, CE
- Lens: FOV H 202.0°± 3°
- Active Pixel: 1920 (H) x 1200 (V)
- Frame Rate: 120 fps @ full resolution
- Pixel Size: 3.0 x 3.0 μm
- Power Supply Range: 9 ~ 19 VDC
- Focusing Distance: 50cm (lens is glued)
The LI-AR0234CS-GMSL2-OWL is equipped with ON Semiconductor CMOS 2.3MP digital image sensor AR0234CS, capable of producing clear, low-noise images in both low-light and bright scenes. This camera outputs 1920 x 1200 RAW data.
|
General |
|
|
Sensor |
ON Semiconductor CMOS 2.3MP Image Sensor AR0234CS |
|
Optical Format |
1/2.6" |
|
Resolution |
1920 (H) x 1200 (V) (active pixels) |
|
Pixel Size |
3.0 x 3.0 μm |
|
Output Format |
10-bit RAW |
|
Color / Mono |
Color sensor |
|
Frame Rate |
120 fps @ full resolution |
|
Shutter |
Global shutter |
|
Serializer |
Maxim MAX9295A/B |
|
Power Supply Range |
9 ~ 19 VDC |
|
IP Rating |
IP65 |
|
FAKRA Connector |
FAKRA Z TYPE |
|
Power Consumption |
70 mA @ 12 VDC |
|
Operating Temp |
-20℃ ~ +50℃ |
|
Storage Temp |
-20℃ ~ +50℃ |
|
Weight |
~ 37 g |
|
Part# |
LI-AR0234CS-GMSL2-OWL |
|
Certifications |
FCC, CE |
|
Lens |
|
|
Focal Length |
1.34 ± 5% |
|
Aperture, F/# |
2.0 ± 5% |
|
Field of View (FOV) |
202.0˚ ± 3˚ horizontal |
|
127.2˚ ± 2˚ vertical |
|
|
IR Filter |
650 nm ± 10 nm IR cut filter |
|
Lens Mount |
M12 x 0.5 |
