Lantech
Lantech offers a complete family of industrial networking products in support of the global transition to all Ethernet services. Lantech products and solutions provide for the delivery of universal Ethernet services across various markets and applications.
-
TPGS-L6424XTR EN50155 Managed Ethernet Switch w/ enhanced G.8032 Ring, PXE, WVI
24 10/100/1000T + 4 10G Copper M12 X-coded OS3 (w/8/16 PoE at/af) EN50155 Managed Ethernet Switch w/ enhanced G.8032 Ring, PXE, WVI input
Key Features:
- 24 10/100/1000T + 4 1G/2.5G/5G/10G copper M12 X-coded (Total 28 Ports Switch)
- PoE model: w/8/16 PoE 802.3af/at ports EN50155 M12 Managed Ethernet Switch to feed power up to 30W for active mode operation (PoE budget 160W)
- EN45545-2 Fire & Smoke, EN50155 and EN61373 shock/vibration verification
- Galvanic isolation from power input/Ethernet ports to system 1.5KV
- PoE model: PoE management including PoE detection and scheduling, pre-set power feeding schedule, remote enable/disable
- Wide dual power input voltage ranges from 16.8~137.5VDC with galvanic isolation
-
IPGS-3408GSFP 8-Port POE + 4-Port SFP Managed switch
- Support IEEE802.3at/af up to 30W per port
- PoE management incl. Detection and Scheduling
- Enhanced G.8032 ring protection < 20ms with easy configuration; Dynamic coupling ring; Aggregation ring* -

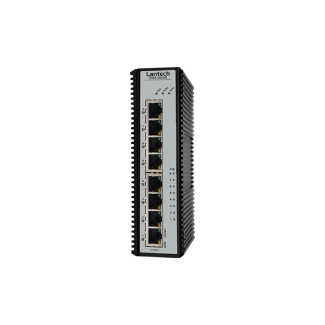

IPGS-0008B - 8 port unmanaged switch
8 10/100/1000T PoE at/af Industrial Ethernet Unmanaged Switch ; 12V/48V input models
-

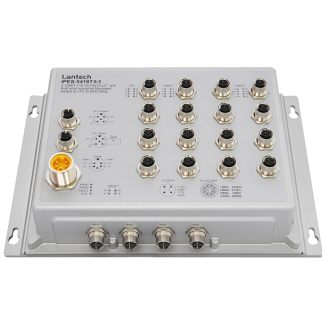

IPES-5416T-8-X - 20 port managed switch
- Optional 12V input boost to 48V output for IEEE802.3at/af max.80W
- Support PTPv2 <1us, relay contact & environmental monitoring
- Optional 72V input steps down to 48V output for IEEE 802.3at/af max.80W -
IPES-5416T-8
Model Code: IPES-5416T-8
- IP67/ IP43 housing; User friendly UI, including auto topology drawing; Complete CLI
- Optional 110V input to 48V output for IEEE 802.3at/af max.80W
- IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling -

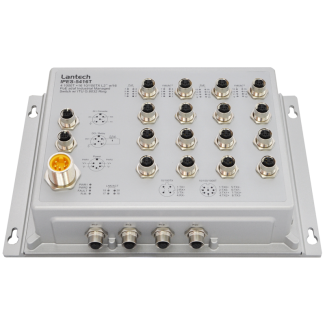

IPES-5416T-16
Model Code: IPES-5416T-16
- EN50155/61373/45545-2 certified
- IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling
- Optional 24V input boost to 48V output for IEEE802.3at/af max.120W -

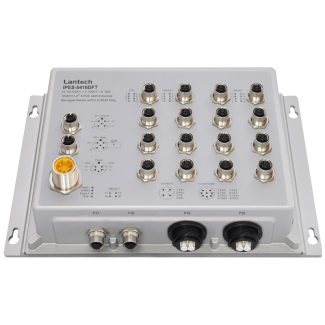

IPES-5416DFT-8
Model Code: IPES-5416DFT-8
- EN50155/61373/45545-2 certified
- IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling
- Optional 12V input boost to 48V output for IEEE802.3at/af max.80W -

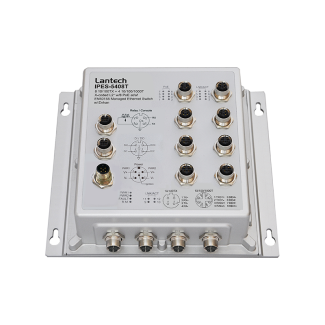

IPES-5408T-X
Model Code: IPES-5408T-X
- EN50155/61373/45545-2 certified
- IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling
- Optional 12V input boost to 48V output for IEEE802.3at/af max.80W -

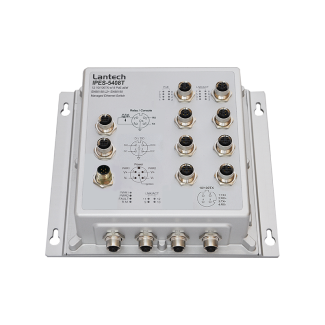

IPES-5408T
Model Code: IPES-5408T
- EN50155/61373/45545-2 certified
- IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling
- Optional 12V input boost to 48V output for IEEE802.3at/af max.80W -

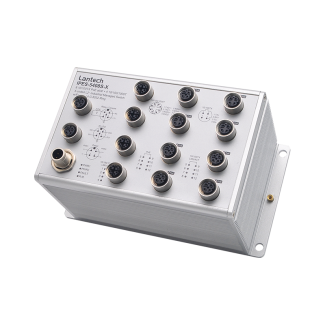

IPES-5408S-X - 12 port, M12 managed switch
- Support PTPv2 one-step transparent clock @ 4 10/100/1000T ports
- EN50155/61373/45545-2 verification*; Compact size
- IEEE802.3at/af up to 30W per port; PoE management incl. detection and scheduling -
IPES-5408DFT-X
Model Code: IPES-5408DFT-X
- EN50155/61373/45545-2 certified
- Optional 12V input boost to 48V output for IEEE802.3at/af max.80W
- Optional 72V input steps down to 48V output for IEEE 802.3at/af max.80W -
IPES-5222T-8
Model Code: IPES-5222T-8
- EN50155/61373/45545-2 certified; Optional 12V / 72V input voltage
- Up to 8x PoE 10/100TX at/af ports w/PoE management
- Enhanced G.8032 ring protection < 20ms with easy configuration; Train ring for dynamic coupling ring; Aggregation ring* -
IPES-5216DF-8
Model Code: IPES-5216DF-8
- EN50155/61373/45545-2 certified
- Optional 12V input boost to 48V output for IEEE802.3at/af max.80W
- Enhanced G.8032 ring protection < 20ms with easy configuration; Train ring for dynamic coupling ring; Aggregation ring* -

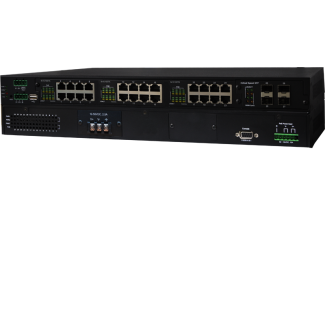

IPES-3424DSFP-2P - 28 port, PoE, managed switch
- High-density 10/100TX L2+ managed PoE at/af switch
- Enhanced G.8032 ring protection < 20ms with easy configuration; Dynamic coupling ring; Aggregation ring*
- Supports PoE management -

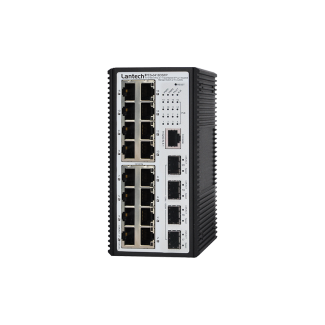

IPES-3416DSFP - 20 port managed switch
- 16 x 10/100TX + 4 x SFP POE at/af
- Support IEEE802.3at/af up to 30W per port
- PoE management incl. Detection and Scheduling
- PTP 1588 v2 supported on fiber ports -
IPES-3408GSFP - 12 port SFP, managed switch
- Support IEEE802.3at/af up to 30W per port
- PoE management incl. Detection and Scheduling
- Enhanced G.8032 ring protection < 20ms with easy configuration; Dynamic coupling ring; Aggregation ring* -

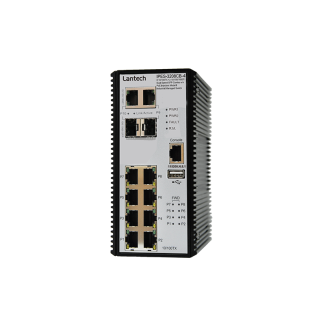

IPES-3208CB-4 - 10 port managed switch
- Support 4 x passive PoE Mode B
- PoE management incl. Detection and Scheduling
- Single G.8032 ring protection < 20ms with auto configuration -

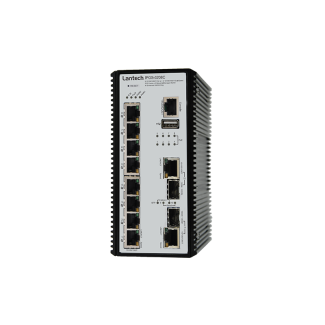

IPES-3208C - 10 port SFP, PoE managed switch
- Support IEEE802.3at/af up to 30W per port
- PoE management incl. Detection and Scheduling
- Single G.8032 ring protection < 20ms with auto configuration -
IPES-2208CB - 8 port SFP PoE switch
- Pro-Ring IIse for self-recovery ring in 20ms
- Support PoE Plus 802.3at/af; 240W PoE budget;12V~48V input (12V model)
- PoE management incl. Detection, Delay and Scheduling -

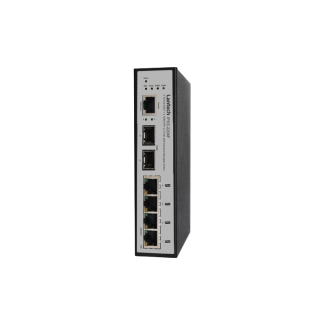

IPES-2204F - 6 port smart switch
- Pro-Ring IIse for self-recovery ring in 20ms
- Support PoE Plus 802.3at/af; 240W PoE budget;12V~48V input (12V model)
- PoE management incl. Detection, Delay and Scheduling -

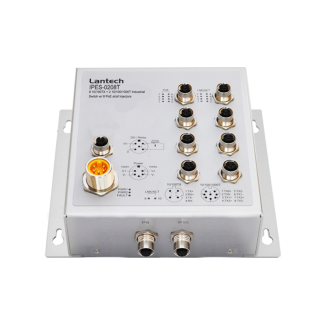

IPES-0208T
Model Code: IPES-0208T
- EN50155/ E-Mark certificate
- Provides M12 connector with IP67 / 43 rated protection
- IEEE802.3at/af up to 30W PoE output -

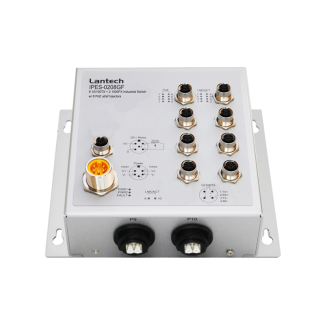

IPES-0208GF
Model Code: IPES-0208GF
- EN50155/ E-Mark certificate
- Provides M12 connector with IP67 / 43 rated protection
- IEEE802.3at/af up to 30W PoE output -

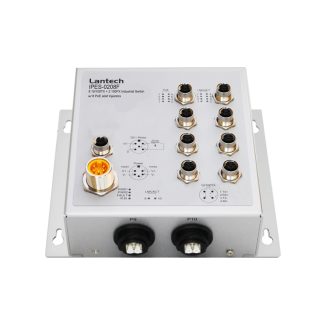

IPES-0208F
Model Code: IPES-0208F
- EN50155/ E-Mark certificate
- Provides M12 connector with IP67 / 43 rated protection
- IEEE802.3at/af up to 30W PoE output -

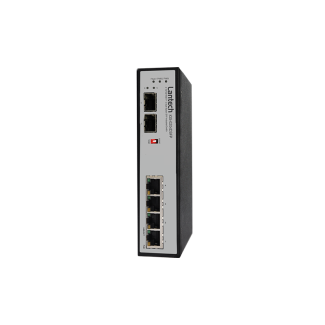

IGS-0204DSFP - 6 port SFP industrial switch
- 12V to 48V dual input
- Relay contact to connect with alarm system
- Wide operating temperature range from -40°C to 75°C
