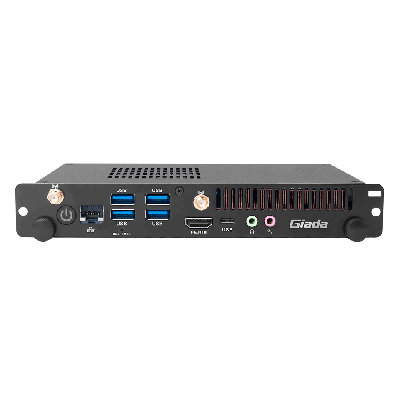

PC611 High Performance OPS Player
High Performance OPS Player with 11th Gen Core i3/i5, 5 x USB and 1x HDMI
Key Features:
- Intel Tiger Lake 11th Gen. processors
- JAE support HDMI output
- 1 x HDMI (4096 x 2160 @60 Hz)
- Support Wi-Fi/BT module
Giada PC611 is powered by Intel 11th-Gen Tiger Lake Core i3-1115G4 and Core i5-1135G7 processors. The high-performance OPS also has a high price-performance ratio and is a low-cost hardware solution for interactive whiteboards in education and conferences.
PC611, which complies with Intel's Open Pluggable Specification (OPS), is simple to instal, upgrade, and maintain. Furthermore, the OPS includes TPM 2.0 features (optional) to improve productivity and data security. Giada PC611 is powered by Intel 11th-Gen Core i3-1115G4 and Core i5-1135G7 processors. The high-performance OPS also has a high price-performance ratio and is a low-cost hardware solution for interactive whiteboards in education and conferences.
PC611, which complies with Intel's Open Pluggable Specification (OPS), is simple to instal, upgrade, and maintain.
Key Features:
- Intel Tiger Lake 11th Gen. processors
- JAE support HDMI output
- 1 x HDMI (4096 x 2160 @60 Hz)
- Support Wi-Fi/BT module
| CPU | Intel i3-1115G4 Processor Intel i5-1135G7 Processor |
|
EBase Frequency |
33.00GHz /2.40 GHz
|
| Turbo Frequency | 4.10 GHz/4.20 GHz |
|
Chipset |
SoC |
|
Processing Units |
2 Cores /4 Cores
|
|
TDP |
28 W
|
| Memory
|
|
| Size | Up to 32 GB |
| Type | 2 x SO-DIMM DDR4-3200 MHz |
| Socket 1 |
1 x M-Key M.2 (2242/2280) for PCIe SSD
|
| Storage |
|
|
GPU |
Intel UHD Graphics (Core i3 processor)
Intel Iris Xe Graphics (Core i5/i7 processor)
|
|
Graphic Engine |
DirectX 12.0, OpenGL 4.5, OpenCL 2.2, 8K60 12b 4:2:0 HEVC/VP9/SCC
|
|
Display Interface |
1 x HDMI (Max.4096 x 2160 @60 Hz) |
|
JAE Interface
|
HDMI (Max. 4096 x 2304 @60Hz)
|
|
Network
|
|
|
Network Controller
|
1 x Realtek RTL 8111H Gigabit Ethernet |
|
Ethernet Interface
|
1 x RJ45
|
|
Wi-Fi/BT
|
1 x E-Key M.2(2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi) |
|
Mobile Network
|
NA |
|
I/O Interface |
|
|
USB |
1 x USB Type-C3.2 Gen2,
4 x USB3.2 Gen1
|
|
JAE Interface |
1 x 80pin JAE (HDMI2.0, 1 x USB3.2 Gen1, 3 x USB2.0, 1 x TTL, DC)
|
|
Serial Port |
NA
|
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
Antenna |
2 x Connector for Wi-Fi/BT |
|
System
|
|
|
TPM
|
Optional: TPM2.0
|
|
Watchdog Timer
|
N/A |
|
Auto Power On
|
Yes (BIOS setting) |
|
RTC
|
Yes (BIOS setting) |
|
Remo on
|
NA |
|
Power Requirement
|
80pin JAE, 12 V~19 V |
|
Dimensions
|
200 mm x 119 mm x 30 mm (7.87” x 4.69” x 1.18”) |
|
Construction
|
Metal, Black
|
|
Operating System
|
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit) |
|
Operating Temperature
|
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow |
|
Humidity
|
95% @ 45°C (non-condensing) |
|
Certifications
|
CE, FCC Class B
|
