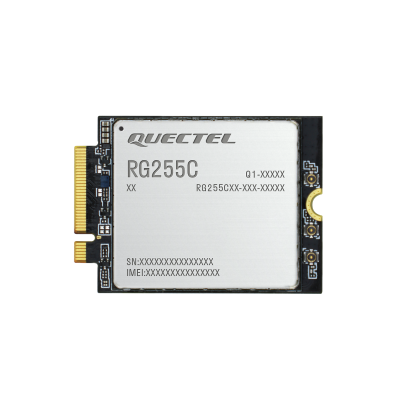

RG255C-GL 5G RedCap Sub-6 GHz M.2 Module
5G RedCap Sub-6 GHz M.2 Module
Key Features:
- M.2 form factor
- Worldwide 5G/LTE coverage
- 5G SA mode with features of 5G LAN/URLLC/Slicing
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment (Optional)
- Feature refinements: DFOTA and VoNR/VoLTE (Optional)
- PCIe 2.0 interface for Wi-Fi/Bluetooth
Quectel RG255C-GL M.2 is a 5G Sub-6 GHz M.2 module. Adopting the 3GPP Rel-17 RedCap technology, with 5G LAN/ URLLC/ Slicing features, the module supports a theoretical peak data rate of 223 Mbps in the downlink and 123 Mbps in the uplink. The module supports LTE Cat 4 and 5G Sub-6 SA mode and is backward compatible with Rel-15 and Rel-16 networks. The module can meet customers’ different application demands for medium speed, large capacity, low latency, high reliability, etc., and is convenient for customers to design.
RG255C-GL M.2 module supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, BDS, Galileo & NavlC). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCIe 2.0, PCM, etc.), and abundant functionalities (USB drivers for Windows 8.1/10/11, Linux, and Android) extend the module's applicability to a wide range of RedCap applications.
|
Specification |
Details |
|---|---|
|
Model |
5G RedCap Sub-6 RG255C-GL M.2 |
|
Region/Operator |
Global |
|
Dimensions (mm) |
30 × 42 × 3.25 |
|
Weight (g) |
8.4 |
|
Temperature Range |
Operating: -30 °C to +75 °C Extended: -40 °C to +85 °C |
|
Frequency Bands |
|
|
5G NR |
3GPP Rel-17 RedCap SA operation, Sub-6 GHz |
|
SA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 77/ 78/ 79 |
|
|
DL MIMO (5G NR) |
2 × 2 MIMO: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 77/ 78/ 79 |
|
LTE-FDD |
B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 30/ 66/ 70/ 71 |
|
LTE-TDD |
B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 |
|
DL MIMO (LTE) |
2 × 2 MIMO: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 30/ 34/ 38/ 39/ 40/ 41/ 42/ 43/ 48/ 66/ 70/ 71 |
|
GNSS (Optional) |
GPS/ GLONASS/ BDS/ Galileo/ NavIC |
|
Certifications |
Regulatory: CE*/ RCM*/ FCC*/ IC* Others: RoHS |
|
Carrier |
TBD |
|
Data Rates (Max.) |
5G SA Sub-6: 223 Mbps (DL)/ 123 Mbps (UL) LTE: 195 Mbps (DL)/ 105 Mbps (UL) |
|
Interfaces |
|
|
USIM |
×2 |
|
USB 2.0 |
×1 |
|
PCIe 2.0 |
×1 |
|
RESET# |
×1 |
|
PCM |
×1 |
|
Antennas |
Cellular: ×2; GNSS: ×1 |
|
Voice (Optional) |
Digital Audio and VoNR/ VoLTE |
|
Enhanced Features |
eSIM: ○ DTMF: ● DFOTA: ● (U)SIM Card Detection: ○ |
|
Drivers |
|
|
USB Serial Driver |
Windows 8.1/ 10/ 11; Linux 2.6–6.7; Android 4.x–13.x |
|
RIL Driver |
Android 4.x–13.x |
|
PCIe MHI Driver |
Linux 3.10–6.7 |
|
USB MBIM Driver |
Windows 10/ 11; Linux 3.18–6.7 |
|
USB RNDIS Driver |
Windows 8.1/ 10/ 11; Linux 2.6–6.7 |
|
USB GobiNet Driver |
Linux 2.6–6.7 |
|
USB QMI_WWAN Driver |
Linux 3.4–6.7 |
|
Electrical Features |
|
|
Supply Voltage Range |
3.135–4.4 V, typ. 3.7 V |
|
Power Consumption |
Typical 3 mA @ Sleep Typical 26 mA @ Idle |
|
Notes |
① Theoretical only; actual values depend on network conditions. |
|
* Under development/In progress. |
|
|
● Supported. |
|
|
○ Optional. |
|
|
TBD: To be determined. |
RG255CGL00AB-4M2-MN20AA
