RG255C-GL 5G RedCap Sub-6 GHz Mini PCIe Module
5G RedCap Sub-6 GHz Mini PCIe Module
Key Features:
- Worldwide 5G/4G coverage
- 5G SA mode, 5G LAN*/ URLLC/ Slicing supported
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment (optional)
- Feature refinements: DFOTA and VoNR/ VoLTE (optional)

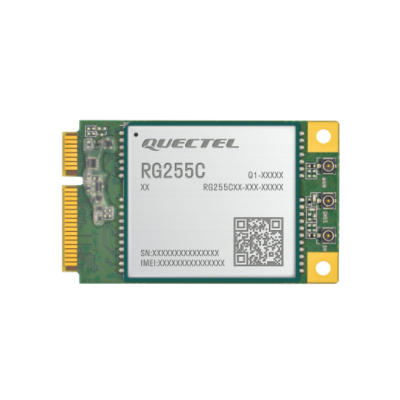

Quectel RG255C-GL Mini PCIe is a 5G RedCap module adopting standard PCI Express® Mini Card form factor (Mini PCIe). Adopting the 3GPP Rel-17 RedCap technology, the module supports 5G LAN*/ Slicing/ URLLC, etc., with a theoretical peak data rate of 223 Mbps in the downlink and 123 Mbps in the uplink. The module supports LTE Cat 4 and 5G Sub-6 SA modes and is backward compatible with 3GPP Rel-15 and Rel-16 networks. The module can meet customers’ different application demands for medium speed, large capacity, low latency, high reliability, etc.
RG255C-GL Mini PCIe module supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, NavlC, BDS and Galileo). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCM, UART, etc.), and abundant functionalities (USB drivers for Windows 8.1/ 10/ 11, Linux, and Android) extend the module's applicability to a wide range of RedCap applications.
|
Specification |
Details |
|---|---|
|
Region/Operator |
Global |
|
Dimensions (mm) |
30.0 × 50.95 × 4.95 |
|
Weight (g) |
11.0 |
|
Temperature Range |
|
|
Operating Temperature |
-30 °C to +75 °C |
|
Extended Temperature |
-40 °C to +85 °C |
|
Frequency Bands |
|
|
5G |
5G NR 3GPP Release 17 RedCap SA operation, Sub-6 GHz |
|
5G NR SA Bands |
n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 77/ 78/ 79 |
|
DL 2 × 2 MIMO Bands |
n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 77/ 78/ 79 |
|
LTE |
|
|
LTE-FDD Bands |
B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 30/ 66/ 70/ 71 |
|
LTE-TDD Bands |
B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 |
|
DL 2 × 2 MIMO Bands |
B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 30/ 34/ 38/ 39/ 40/ 41/ 42/ 43/ 48/ 66/ 70/ 71 |
|
GNSS (optional) |
GPS/ GLONASS/ BDS/ Galileo/ NavlC |
|
Certifications |
|
|
Regulatory |
CE*/ RCM*/ FCC*/ IC* |
|
Carrier |
TBD |
|
Others |
RoHS |
|
Data Rates (Max.) ① |
|
|
5G SA Sub-6 |
223 Mbps (DL)/ 123 Mbps (UL) |
|
LTE |
195 Mbps (DL)/ 105 Mbps (UL) |
|
Interfaces |
|
|
(U)SIM |
× 1 |
|
UART |
× 2 |
|
USB 2.0 |
× 1 |
|
PCM |
× 1 |
|
I2C |
× 1 |
|
PERST# |
● |
|
Antennas |
Cellular: × 2; GNSS: × 1 |
|
Voice |
|
|
Voice |
Digital Audio and VoNR/VoLTE (optional) |
|
Enhanced Features |
|
|
eSIM |
○ |
|
DTMF* |
● |
|
DFOTA |
● |
|
(U)SIM Card Detection |
● |
|
Drivers |
|
|
USB Serial Driver |
Windows 8.1/10/11; Linux 2.6–6.7; Android 4.x–12.x |
|
RIL Driver |
Android 4.x–12.x |
|
USB MBIM Driver* |
Windows 10/11; Linux 3.18–6.7 |
|
USB GobiNet Driver |
Linux 2.6–6.7 |
|
USB QMI_WWAN Driver |
Linux 3.4–6.7 |
|
Electrical Features |
|
|
Supply Voltage Range |
3.0–3.6 V, typ. 3.3 V |
|
Power Consumption |
TBD |
NOTES:
-
①: Theoretical only; actual values depend on network conditions.
-
*: Under development/In progress.
-
●: Supported; ○: Optional.
-
TBD: To be determined.
