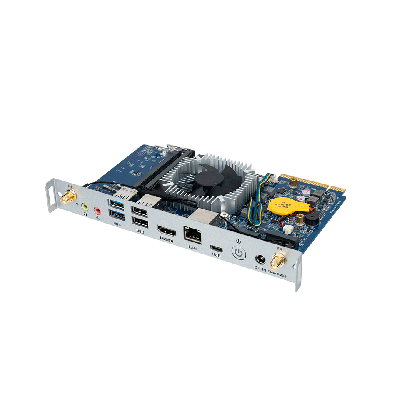

SDM-L613 13th Gen. CPU SDM Module

In stock

SKU:

SDM-L-13x5G50H0G-GIA

Intel Raptor Lake-U Core, 1 x HDMI (7680 x 4320 @60 Hz), SDM I/O support 4K resolution Support Wi-Fi/BT, Intel vPro technology

Key Features:

Intel® 13th Gen. Raptor Lake Processors
Supporting 8K Display
Intel® vPro Technology
Support Wi-Fi/BT module

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The Giada SDM-L613, equipped with Intel Raptor Lake Core i3/i5/i7 processors, ushers in a new era of performance and efficiency. These processors boast a blend of high-performance and efficient cores that collaborate seamlessly, optimizing power consumption without compromising processing prowess.

This module supports the Intel-integrated Iris Xe GPU for Core i5/i7 configurations, enabling a maximum 8K resolution through the HDMI2.1 video out port. The SDM (PCIE X8) connector can transmit HDMI2.0 (4096 x 2304 @60 Hz), DP1.2 (4096 x 2304 @60 Hz), USB3.2 Gen1, UART, GSPI, I2C, PCIe, and SYS_FAN signals.

Additionally, the Intel Hardware Shield provides integrated hardware-based PC protection, encompassing below-the-OS security, application and data protection, and advanced threat detection.

Key Features:

Intel® 13th Gen. Raptor Lake Processors
Supporting 8K Display
Intel® vPro Technology
Support Wi-Fi/BT module

This product is listed in Digital Signage

Specifications

CPU	CPU	Intel^® Core™ i3-1315U processor Intel^® Core™ i5-1335U/i5-1345U processor Intel^® Core™ i7-1365U processor
	Efficient Frequency	3.30GHz /3.40 GHz /3.50 GHz /3.70 GHz
	Performance Frequency	4.50 GHz /4.60 GHz /4.70 GHz /5.00 GHz
	Chipset	SoC
	Processing Units	6 Cores /10 Cores /10 Cores /10 Cores
	Configurable TDP-up	15 W /215 W /15 W/ 15 W
Memory	Size	Up to 64 GB
Memory	Type	2 x SO-DIMM DDR5-5200 MHz
Storage	Socket 1	1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
Display	GPU	Intel® UHD Graphics (Core i3) Intel® IRIS® Xe Graphics (Core i5, Core i7)
	Graphic Engine	DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K60fps 12b 4:2:0 HEVC/VP9/SCC
	Display Interface	1 x HDMI (Max.7680 x 4320 @60 Hz)
Network	Network Controller	1 x Intel® Ethernet Controller I225-LM
	Ethernet Interface	1 x 2.5 GbE RJ45
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)
	Mobile Network	NA
I/O interface	USB	1 x USB Type-C3.2 Gen1, 2 x USB3.2 Gen2, 2 x USB2.0
	Serial Port	NA
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	Button	1 x Power on, 1 x CLR-CMOS
	Antenna	2 x Connector for Wi-Fi/BT
	SDM I/O PCIe X8 Edge Connector	HDMI (4096 x 2304 @60 Hz),DP (4096 x 2304 @60 Hz),USB3.2 Gen1, UART, GSPI, I2C, PCIe, SYS_FAN
System	TPM	Optional: TPM2.0
	JAHC	Watchdog Timer, Auto Power On, RTC
	Power Requirement	DC-IN, 12 V/5 ASDM IO: 12 V
	Dimensions	175mm x 110mm (6.89” x 4.33” )
	Operating System	Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating Temperature	0°C ~60°C (32°F~113°F) @0.7m/s Air Flow
	Storage Temperature	-20°C ~75°C (-4°F~167°F)
	Humidity	95% @ 60°C (non-condensing)
