Brand: Transcend

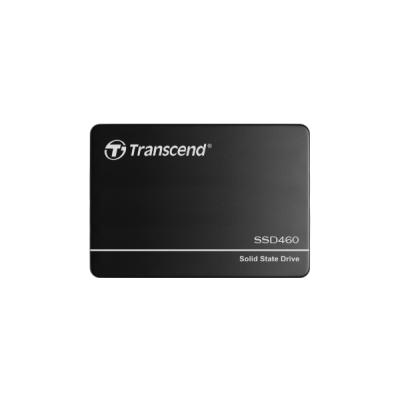

SSD460K & SSD460K-I 2.5" DRAM-less SSD
In stock
SKU:
TSxxxxSSD460K/-I
2.5" DRAM-less SSD SSD460K features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology
Enquire Now
Enquire Now
Compared to 3D NAND at 96 layers, this density breakthrough greatly improves storage efficiency. Transcend's industrial 2.5" DRAM-less SSD SSD460K features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology. The SSD460K is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and extended operational life.
Key Features:
- Compliant with RoHS 2.0 standards
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Supports Transcend Scope Pro software
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- NCQ command for better performance
- TRIM command for better performance
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Advanced Garbage Collection
- Advanced Global Wear-Leveling and Block management for reliability
Appearance |
|
| Dimensions | 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27") |
|---|---|
| Weight | 54 g (1.9 oz) |
| Form Factor |
|
Interface |
|
| Bus Interface |
|
Storage |
|
| Capacity |
|
| Flash Type |
|
Operating Environment |
|
| Operating Voltage |
|
| Operating Temperature |
|
| Storage Temperature | -55°C (-67°F) ~ 85°C (185°F) |
| Humidity | 5% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency) |
Power |
|
| Power Consumption (Operation) | 1.9 watt(s) |
| Power Consumption (Sleep) | 0.3 watt(s) |
Performance |
|
| Sequential Read/Write (CrystalDiskMark) | Read: up to 560 MB/s Write: up to 500 MB/s |
| 4K Random Read/Write (IOmeter) | Read: up to 55,000 IOPS Write: up to 80,000 IOPS |
| Mean Time Between Failures (MTBF) | 3,000,000 hour(s) |
| Terabytes Written (TBW) | up to 4376 TBW |
| Drive Writes Per Day (DWPD) | 1.95 (3 yrs) |
| Note |
|
