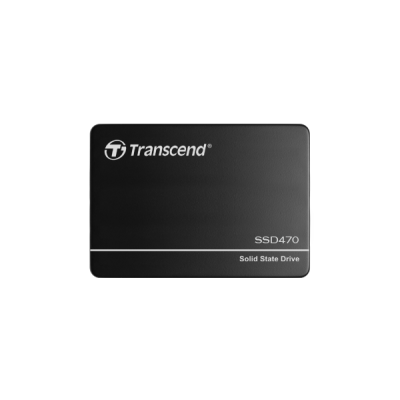

SSD470A 2.5" SATA SSDs
2.5" SSD SATA III 6Gb/s interface and 112-layer 3D NAND flash
Key Features:
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in an extended temperature range (from -20°C to 75°C)
Transcend's SSD470A 2.5" SSD is a self-encrypting drive (SED) that meets TCG (Trusted Computing Group) Opal 2.0 specifications. Hardware-based AES 256-bit encryption and sector-specific LBA (Logical Block Address) permissions are used to secure data.
With its 112-layer 3D NAND flash and SATA III 6Gb/s interface, Transcend's SSD470A SSD offers a ground-breaking capacity that significantly boosts storage effectiveness. Fast random read and write rates are made possible by its integrated DRAM cache, which also increases drive endurance. Anti-sulfur resistors also ensure their dependability in challenging circumstances. Additionally, Transcend's SSD470A has undergone internal 100% chamber testing for prolonged operating temperatures of -20°C to 75°C.
Key Features:
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES)
- Compliant with TCG Opal specifications and IEEE 1667 standards
- Power-saving DevSleep (Device Sleep) mode (optional)
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in an extended temperature range (from -20°C to 75°C)
Appearance |
|
| Dimensions | 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27") |
|---|---|
| Weight | 54 g (1.9 oz) |
| Form Factor |
|
Interface |
|
| Bus Interface |
|
Storage |
|
| Capacity |
|
| Flash Type |
|
Operating Environment |
|
| Operating Voltage |
|
| Operating Temperature |
|
| Storage Temperature | -55°C (-67°F) ~ 85°C (185°F) |
| Humidity | 5% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency) |
Power |
|
| Power Consumption (Operation) | 5.0 watt(s) |
| Power Consumption (Sleep) | 1.1 watt(s) |
Performance |
|
| Sequential Read/Write (CrystalDiskMark) | Read: up to 560 MB/s Write: up to 500 MB/s |
| 4K Random Read/Write (IOmeter) | Read: up to 80,000 IOPS Write: up to 85,000 IOPS |
| Mean Time Between Failures (MTBF) | 3,000,000 hour(s) |
| Terabytes Written (TBW) | up to 1,210 TBW |
| Drive Writes Per Day (DWPD) | 2.16 (3 yrs) |
| Note |
|
