Brand: IEI Integration Corp.

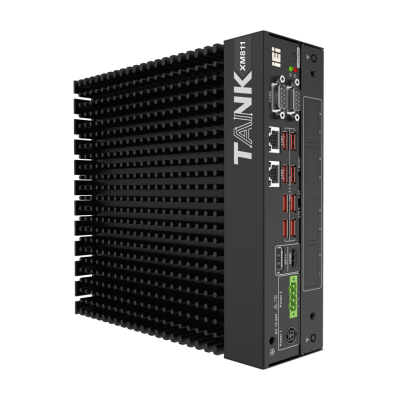

TANK-XM811 13th/14th Gen Fanless Embedded Computer

In stock

SKU:

TANK-XM811-ixAx-R11

High-Performance 12th/13th/14th Generation Intel Core Fanless Embedded Computer

Key Features:

Supported CPUs:
- Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)
- Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)
- Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP)
2 x 2.5GbE ports
Multiple USB ports and serial ports
Multiple internal expansion boards for flexible selection
Various optional backplanes and chassis
CE/FCC compliant

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

IEI has engineered the TANK-XM811 with the latest technologies to deliver optimized and reliable processing performance at the rugged edge. This product features 12th generation Intel® Core™ processors, expandable GPU power, rapid NVMe storage, and scalability through IEI's eChassis modules. This product can be used for various industrial IoT applications, including surveillance, transportation, and advanced manufacturing.

Furthermore, the system effectively reduces lead times and inventory carrying costs by providing comprehensive modularized options and easy configuration.

This product is listed in Embedded Computers, IEI Integration Corp.

Specifications

Form factor
SBC Form Factor	CPU: 12th/13th/14th Gen Intel® Core™ CPU 35/65W Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP) Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP) Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP) Chipset: R680E System Memory: 2 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 64GB) Power: DC Jack: 12 V~28 V DC Terminal Block: 12 V~28 V DC Consumption: 12V @ 8.8A (Intel® Core™ i9-12900TE with 16GB memory)
I/O Interface
I/O Ports	USB: 8 x USB 3.2 Gen 2 Ethernet: 2 x RJ-45: 2 x 2.5 GbE by Intel ® I226V (colay I226LM) COM Port: 2 x RS-232/422/485 4 x RS-232 Digital I/O: 12-bit Digital I/O (6-in/ 6-out) Display: 1 x HDMI™ 1 x DP++ TPM: Support Intel PTT Watchdog Timer: Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots	M.2: 1 x 2280 M-key (PCIe x4) 1 x 2230 A-key (USB+PCIe x1, supports vPRO) Backplane: Optional
System
Cooling method / System Fan	Fanless 4-pin external system fan connector
Drive Bays	1 x 2.5＂ SATA 6Gb/s HDD/SSD bay
Indicator & Buttons
Buttons	1 x Power button 1 x Reset button 1 x AT/ATX switch
Indicators	1 x Power LED (green) 1 x HDD LED (yellow)
Physical Characteristics
Construction	Extruded aluminium alloy
Colour
Colour	Black
Dimensions
Dimensions	230.6 x 256.04 x 76.2
Weight
Weight	3.33/3.7 kg
Environment
Operating Temperature	-20°C ~ 60°C with air flow (CPU TDP35W & SSD) -20°C ~ 50°C with air flow (CPU TDP65W & SSD)
Humidity	10% ~ 95% non-condensing
Operating Vibration	Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Operating Shock	MIL-STD-810G 514.6C-1 (SSD)
Safety & EMC	CE/FCC compliant
OS Support
OS Support	Microsoft Windows 10 / Windows 11, Linux

Downloads

Datasheet

Ordering Information

TANK-XM811-i9AD-R11	Ruggedized Fanless Embedded System With Intel® 12th i9 CPU, 16GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS
TANK-XM811-i7AC-R11	Ruggedized Fanless Embedded System With Intel® 12th i7 CPU, 8GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS
TANK-XM811-i5AC-R11	Ruggedized Fanless Embedded System With Intel® 12th i5 CPU, 8GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS
