TEK800 8” Sunlight Readable Vehicle Display
8” Vehicle Monitor High brightness ultra-low power
Key Features:
- High brightness ultra-low power LED backlight
- 10 steps backlight dimmer and auto dimmer
- Auto power on/off by VGA signal
- One composite video input with auto power/auto switch
- All-in-one cable with IP67 connectors
- Power 9-36V meets automotive car/truck requirements
- Ultra-low power consumption
- Wide temperature range
- Shock/Vibration proof
- PCT (Projected Capacitive Multi-touch) optional

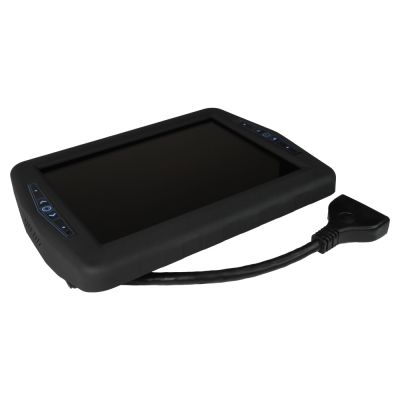

The TEK800 is a rugged vehicle monitor designed for outdoor use, featuring an IP65-rated chassis that withstands harsh environments and ensures readability in direct sunlight. The monitor is equipped with an advanced controller that automatically or manually adjusts the backlight based on ambient light conditions, making it ideal for applications from the darkest night (NVIS) to bright daylight.
For added interactivity, the TEK800 offers an optional resistive touch panel with a USB/RS232 controller, making it suitable for budget-conscious projects. Additionally, it includes a rugged Projected Capacitive (PCT) multi-touch screen option that provides higher light transmission, thicker anti-vandal glass and requires no recalibration. This makes it a preferred choice for industries like medical equipment and industrial instruments, where durability, resistance to scratches, ease of cleaning, and reliable performance with gloved hands are essential.
The TEK800 comes standard with VGA and audio inputs, with optional HDMI/DVI, composite video, and S-Video inputs available as factory options on the rear panel. An optional “all-in-one cable” with a lockable connector is also available for simplified connectivity.
|
Specifications |
|
|
Size |
8 Inches |
|
Aspect |
4:3 |
|
Inputs |
VGA/DVI/HDMI,2 x Composite Video (3 x Composite Video optional) |
|
Audio |
2 x 1.8W |
|
Touch Panel |
Resistive 4 wires USB/RS232, Endurance>2M touch. PCT multi-Touch optional |
|
Power supply |
9-36V DC automotive car/truck suitable |
|
Power consumption |
Normal 6W, HB 8W |
|
Mounting |
Standalone and headrest accessories optional |
|
Warranty |
12 months international, 24 months Europe |
|
Certification |
CE*, e-mark*, EN50155*, CCC* *upon request |
|
Mechanical/ Environmental Specs |
|
|
Dimensions |
214 x 165.9 x 27 mm |
|
Weight |
860gr |
|
Enclosure |
Aluminium chassis/rear. PVC-ABS front. |
|
Operation temperature |
-35ºC to 70ºC max (-20ºC to 60ºC continuous) |
|
Storage temperature |
-40ºC to 85ºC |
|
Vibrations |
1G 2-500Hz |
|
Shock |
20G 11ms |
|
Drop |
10cm max |
|
Mounting |
VESA 75mm mounting holes, Standalone and headrest accessories. |
|
Optical Specifications |
|
|
Brightness |
300/500/1000nits |
|
Contrast |
500:1 |
|
Colours |
256K |
|
Native resolution |
800x600px |
|
Outdoor readability |
Meets MIL-STD-3009 (sunlight readable version XF800HB-US/RS/UPS) |
|
NVIS |
Optional NVIS B compliant |
