TPPC2902 28.8” Bar Passenger Information Fanless Panel PC

In stock
SKU:
TPPC2902_LPC

28.8” 1920x600 bar-type Passenger Information Panel PC Powered by Intel Atom® x5-E3930 Processor

Key Features:

  • 28.8” TFT-LCD 1920 x 600 bar-type fanless panel computer
  • Powered by Intel Atom® x5-E3930 processor, 1.3GHz
  • Wide-range DC input of 9V to 36V DC
  • Support ignition control for power on/off delay timing management
  • Compliant with IP54 on the front panel
  • Tempered glass, surface hardness 6H
  • 1 x DDR3L up to 8GB, M.2 2242 Key B SSD for storage device
  • 1 x mini-PCIe expansion available for wireless communication
  • CE/FCC/E/e-Mark

Enquire Now
Enquire Now

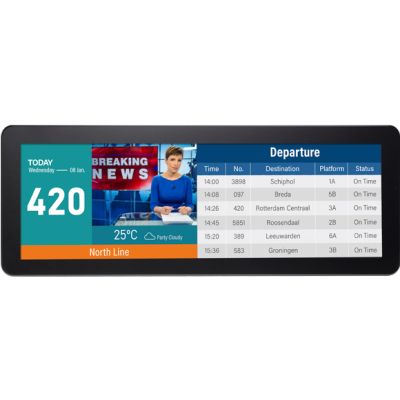

main product photo
We build to order

This panel computer comes with a 28.8-inch TFT-LCD bar-type display and a resolution of 1920 x 600 pixels. It is fanless and powered by an Intel Atom® x5-E3930 processor that runs at 1.3GHz. The computer can be powered by a wide range of DC inputs, from 9V to 36V DC, and supports ignition control for power on/off delay timing management. The front panel is compliant with IP54 and features a tempered glass surface with a surface hardness.


Specifications
LCD Panel
  • LCD size: 28.8 bar-type
  • Resolution: 1920 x 600
  • Luminance: 500 nits cd/m2
  • Contrast ratio: 1,400
  • LCD color: 16.7M
  • View angle: 178 (H), 178 (V)
  • Backlight: LED
System
  • Intel Atom® x5 E3930 processor, 1.3GHz (burst mode: 1.8GHz)
System Front
  • 1 x Ambient light sensor
Main Memory
  • 1 x 204-pin DDR3L SO-DIMM socket, up to 8GB. Support up to 1866 Mhz, non-ECC and unbuffered memory
Rear I/O
  • 1 x Power input connector, 6-pin (9V-36V DC & Ignition control)
  • 1 x DB9 COM port for RS232/422/485
  • 2 x RJ45 Intel® I210-AT gigabit LAN ports
  • 4 x USB 3.0, support USB 2.0
  • 1 x HDMI 1.4b (support 4K x 2K@30Hz)
  • 1 x Line-in, Line-out with 16Ω Amplifier
Audio
  • Realtek ALC888 audio codec
Storage Device
  • 1 x M.2 2242 Key B SSD, up to 256G max
  • 1 x 2.5” SATA SSD reserved expansion
Expansion
  • 1 x mini-PCIe full-size connector on board (support PCIe/USB)
Power Management
  • 9V to 36V DC input (UPS: 12V, 24V and 36V)
  • Ignition on/off control & programmable on/off delay timing
Environment
  • Vibration
    - IEC60068-2-64
    - Operating: 1G, random, 5-500Hz, 1hr/axis (w/ storage)
  • Drop
    - IEC60068-2-32
    - ISTA-2A STD
    - 13.9kg (packing weight) & 81cm (falling height)
  • Temperature
    - Operating temperature: 0~50°C
    - Storage temperatures: 0~70°C
    - Damp heat test per EN60068-2-30, 45~55°C, 95%, 48hrs, non- condensing
Operating System Support
  • Win10 IoT Enterprise 64-bit
  • Linux Yocto 4.14
Mechanical Information
  • Color: black
  • VESA mount (200mm x 200mm; 400mm x 200mm)
  • Dimension: 777.3mm (W) x 292.8mm (D) x 70.2mm (H)
  • System weight (N.W): 13.3kg, 29.32lb
  • Package weight (G.W): 13.9kg, 30.64lb
Certification
  • CE (EN55024, EN55032, EN55035)
  • FCC Class A (Part 15B)
  • E-mark: E-13, 12/24V
  • Complied with ITxPT power consumption requirement
