Brand: Milesight IOT

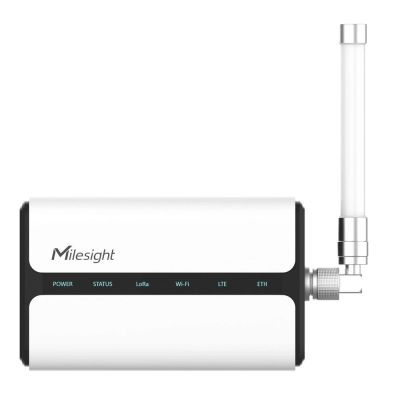

UG65 LoRaWan Indoor Gateway - optional LTE
In stock
SKU:
UG65-915M-EA or UG65-L00AU-915M-EA
LoRaWAN® UG65 Indoor Gateway IP65 Quad-Core SemTech RJ45
Key Features:
- IP65 Rating
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- Multiple Backhaul Connectivities
- Embedded Network Server
- Compatible with Multiple Network Servers
- Global LoRaWAN® Frequency Plans
Enquire Now
Enquire Now
The UG65 is a sturdy indoor LoRaWAN® gateway that offers 8 channels. It utilizes the SX1302 LoRa chip and a powerful quad-core CPU, enabling it to connect with over 2000 nodes. With a line of sight range of up to 15 km and coverage of approximately 2 km in urban environments, the UG65 is well-suited for various indoor applications such as smart offices and buildings. It provides multiple backup options for back-haul connections including Ethernet, Wi-Fi, and cellular. Additionally, it comes equipped with integrated mainstream network servers (such as TTI and ChirpStack) and features a built-in network server and Milesight IoT Cloud, simplifying deployment.
Key Features:
- IP65 Rating
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- Multiple Backhaul Connectivities
- Embedded Network Server
- Compatible with Multiple Network Servers
- Global LoRaWAN® Frequency Plans
Specifications
| Model | UG65 |
| Hardware System | |
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN® | |
| Antenna | Fully Integrated and Internal Antenna (Optional: 1 × 50 Ω N-Female External Connector) |
| Channel | 8 |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Ethernet Interface | |
| Port | 1 × RJ45 (PoE PD support) |
| Physical Layer | 10/100/1000 Base-T (IEEE 802.3) |
| Data Rate | Rate 10/100/1000 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Wi-Fi | |
| Antenna | Fully Integrated and Internal Antenna |
| Standards | IEEE 802.11 b/g/n |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
| Cellular Interface (Optional) | |
| Antenna | Fully Integrated and Internal Antenna |
| SIM Slot | 1 |
| Software | |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Management | Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud |
| Reliability | WAN Failover |
| Power Supply and Consumption | |
| Power Supply | 1. DC Jack Connector for 9-24 VDC power supply 2. 1 × 802.3 af PoE input |
| Consumption | ≤ 4.2W |
| Physical Characteristics | |
| Ingress Protection | Protection IP65 |
| Dimensions | 180 x 110 x 56.5 mm |
| Mounting | Desktop, Wall or Pole Mounting |
| Others | |
| Reset Button | 1 × RST |
| Console Port | 1 × Type-C Port |
| LED Indicators | 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH |
| Built-in | Watchdog, RTC, Timer |
| Certification | CE, FCC |
| Physical Characteristics | |
| Ingress Protection | Protection IP65 |
| Dimensions | 180 x 110 x 56.5 mm |
| Mounting | Desktop, Wall or Pole Mounting |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
