Brand: IEI Integration Corp.

uIBX-260-EHL Fanless Ultra Compact PC

In stock
SKU:
uIBX-260-EHL-JC-R10

Ultra-Compact Industrial Mini PC Fanless system

Key Features:

  • Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  • Onboard LPDDR4x 8G (up to 16GB)
  • M.2 for expansion
  • Four USB 3.2 Gen2 (10Gb/s) ports
  • Two 2.5GbE LAN ports

Enquire Now
Enquire Now

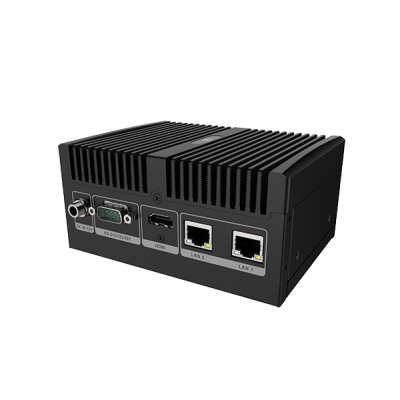

main product photo
We build to order

Hardware Spec.

Form factor
SBC Form Factor
  •  CPU:
    Intel® Celeron® J6412 2GHz (up to 2.6 GHz, quad-core, TDP 10W)
  •  Chipset:
    SoC
  •  System Memory:
    LPDDR4x on board 8GB (up to 16G)
  •  Power:
    DC Jack: 12 V DC
    Consumption: +12V@3.6A (Intel® Celeron® J6412 with 8GB memory)
I/O Interface
I/O Ports
  •  USB:
    4 x USB 3.2 Gen2
    2 x USB 2.0 (optional)(USB expansion is applicable only when 2.5-inch hard disk is not installed)
  •  Ethernet:
    2 x RJ-45 2.5 GbE by I225V controller
  •  Display:
    1 x HDMI™ 1.4b (up to 4k@ 30Hz)
  •  COM Port:
    1 x RS-232/422/485 (DB9)
    1 x RS-232 (optional)
  •  TPM:
    Support Intel PTT
  •  Wireless/Bluetooth:
    1 x 802.11a/b/g/n/ac (M.2 A Key optional)
  •  Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  •  M.2:
    1 x 2230 A-key (PCIe Gen3 x1/ USB2.0)
    1 x 2280 M-key (PCIe Gen3 x2)
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power button(with LED)
1 x Reset button
1 x AT/ATX switch
1 x Clear CMOS Button
Indicators 1 x Power LED
1 x HDD LED
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black C
Dimensions
Dimensions 137 x 102.8 x 65.8
Weight
Weight 0.97KG /1.74KG
Environment
Operating Temperature -10°C ~ 50°C with air flow (M.2)
Humidity 10% ~ 95% non-condensing
Operating Vibration 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Safety & EMC CE / FCC / UKCA compliant
OS Support
OS Support Microsoft® Windows® 10/11, Linux

Ordering Information

uIBX-260-EHL-W10IoT21-E-R10 OS Image with Windows® 10 Enterprise Entry 64-bit 2021 LTSC for uIBX-260-EHL Series, with DVD-ROM, RoHS
uIBX-260-EHL-JC-R10 Fanless embedded system with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 1 x RS-232/422/485, 4 x USB 3.2, 1 x HDMI™, 2 x 2.5GbE Lan, 12V DC, RoHS

Package Contents

Package Content

  • 1 x Mounting Screw

  • 1 x Mounting Bracket

  • 1 x Adapter

  • 1 x Power Cord

Options

EMB-WIFI-KIT02I3-R10

2T2R M.2 wifi module kit for embedded system, IEEEE802.11a/b/g/n/ac/ax, 1 x M.2 AE Key Wireless LAN & Bluetooth 5.2;Intel;AX210.NGWG Module, 2 x RF cable , 2 x Antenna; RoHs

32205-008000-100-RS

FLAT CABLE;RS-232/422/485;2;250mm;28AWG;(A)D-SUB 9P MALE,BLUE;(B)MOLEX 51021-0900 P=1.25;Wins Precision;C24230217-0;RoHS

32001-008600-200-RS

ROUND CABLE;USB CABLE;3;210mm;28AWG;(A)USB A TYPE 4PIN FEMALE *2;(B)DU PONT 2*4P P=2.0 FEMALE;ONE PCS PKG W/ LABEL;WITH 4PCS SCREWS,32000-070301-RS SUBSTITUTE;Wins Precision;RoHS
Downloads
pdf
Datasheet
Ordering Information

uIBX-260-EHL-JC-R10
Fanless embedded system with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 1 x RS-232/422/485, 4 x USB 3.2, 1 x HDMI™, 2 x 2.5GbE Lan, 12V DC, RoHS
