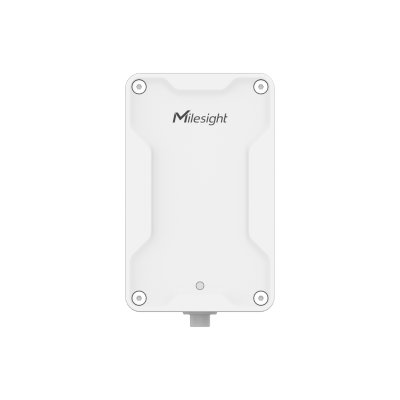

UPS01 Uninterruptible Power Supply
High Capacity up to 12000 mAh Compact Design with IP67 and IK08 Protection
Key Features:
- High Capacity, Long Endurance, Plug and Play
- Data Protection
- Plug and Play
- Real-time Alarming
- Tricolor Indicators
High Capacity up to 12000 mAh
The UPS01 is building a successful power supply solution featured with 12000 mAh that is able to serve connectivity needs for terminal devices for up to 32 hours.
Data Protection
By offering a resilient power supply, the UPS01 is poised to ensure seamless data transmission between terminal devices and remote platforms when a power outage happens. Besides, the heating film also allows it to work in a low-temperature environment for continuous power supply.
Plug and Play
The Type-C and M12 interfaces indicate the easy and quick operation of the UPS01 and eliminate trenching costs and forward.
Compact Design with IP67 and IK08 Protection
With a greater reliance on sophisticated technology, the UPS01 favours a rugged design with IP67 and IK08 and can be served in the most demanding environment and meet mission-critical.
Real-time Alarming
The UPS01 owes its powerful function to cutting-edge technology and ensures the device and network resilience while sending power outage alarms, saving manufacturers the expense of unnecessary maintenance downtime and keeping your business operating without interruption.
Tricolor Indicators
The Milesight UPS01 has tricolour indicators and smart internal logic for status display. By which it increases the operational efficiency and allows for quick data-decision making.
Typical Application
Stable and Secure Option
Portable Power Supply
Typical Mount
DIN Rail Mounting
Pole Mounting
Wall Mounting
Type-C Version
Power |
|
|---|---|
| Power Input | 9~20V⎓2A |
| Input Connector | DC Jack Female Connector |
| Power Output | 5V⎓4A |
| Output Connector | Type-C |
| Battery Capacity | 4 x 3000mAh Lithium-ion Rechargeable Batteries |
| Battery Supply Time1 | 6 ~ 32h |
Others |
|
| LED Indicator | 1×Traffic Light Indicator (Battery Capacity & Diagnose) |
| Button | 1×Reset Button (Internal) |
| Software Features | Power Monitoring, Alarm, Upgrade (Only with Milesight Devices ) |
Physical Characteristics |
|
| Cable Length | DC IN: 30 cm Type-C: 100 cm |
| Ingress Protection | IP67 & IK08 |
| Material & Color | Aluminum, White & Silver |
| Dimension | 96×60×45mm (3.78×2.36×1.77 in) (Without Cable) |
| Operating Temperature | Charge Temperature: -20°C to +45°C (-4℉ to +113℉) Discharge Temperature: -20°C to +60°C (-4℉ to +140℉) |
| Relative Humidity | 0% - 95% (Non-condensing) |
| Installation | Wall Mounting, DIN Rail Mounting, Pole Mounting, Desktop Mounting |
M12 Version
Power |
|
|---|---|
| Power Input | 9~20V⎓2A |
| Input Connector | DC Jack Female Connector |
| Power Output | 6~8.4V⎓1.5A |
| Output Connector | 4-Pin M12 A-Coded Female |
| Battery Capacity | 4 x 3000mAh Lithium-ion Rechargeable Batteries |
| Battery Supply Time1 | 6 ~ 32h |
Others |
|
| LED Indicator | 1×Traffic Light Indicator (Battery Capacity & Diagnose) |
| Button | 1×Reset Button (Internal) |
| Software Features | Power Monitoring, Alarm, Upgrade (Only with Milesight Devices ) |
Physical Characteristics |
|
| Cable Length | DC IN: 30 cm M12: 150 cm |
| Ingress Protection | IP67 & IK08 |
| Material & Color | Aluminum, White & Silver |
| Dimension | 96×60×45mm (3.78×2.36×1.77 in) (Without Cable) |
| Operating Temperature | Charge Temperature: -20°C to +45°C (-4℉ to +113℉) Discharge Temperature: -20°C to +60°C (-4℉ to +140℉) |
| Relative Humidity | 0% - 95% (Non-condensing) |
| Installation | Wall Mounting, DIN Rail Mounting, Pole Mounting, Desktop Mounting |
