Brand: Milesight IOT

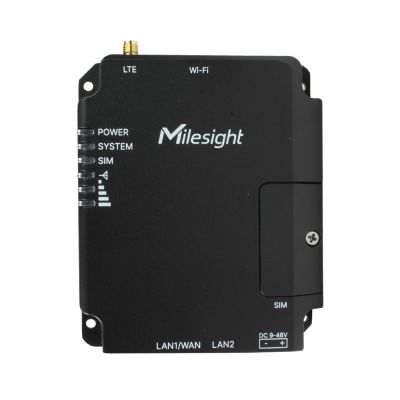

UR32L Lite 3G/4G Industrial Cellular Router Dual LAN

In stock

SKU:

UR32L

For partner & project pricing, please contact us.

POE OPTIONAL

Accessories included: AC PSU, cellular Paddle antennas, DIN rail clip

$205.00

Choose Option:

Configuration

Please select your option

Qty

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The UR32L is a low-cost industrial cellular router with embedded intelligence that is ideal for a wide range of M2M/IoT applications. This drop-in connectivity is a big help to operators in maximising uptime because it supports global WCDMA and 4G LTE carriers. Additionally, the UR32L has two fast Ethernet ports, giving users continuous access to the internet. UR32L offers reliable communications by integrating watchdog and multi-link failover detection. You can easily and effectively manage your network with the help of UR32L, which combines DeviceHub and MilesightVPN. The UR32L is adaptable in the majority of IoT/M2M applications thanks to its simple deployment and thorough remote device management.

Key Features:

Reliable 3G/4G Network
- Global 4G LTE CAT4/3G network with multiple carrier networks
- Automated failover/failback between Ethernet and cellular (SIM card)
- Industrial-Grade Design
- NXP industrial-grade processor
- Rugged enclosure with IP30 protection for harsh environment
- DIN rail or shelf mounting
- Supportwide operating temperature ranging from-40°C to +70°C/-40℉ to +158℉

Security & Reliability
- Secure transmission with VPN tunnels like IPsec/OpenVPN/GRE/L2TP/PPTP /DMVPN
- Embeds hardware watchdog to automatically recover from various failures, ensure the highest level of availability
- Supports access control lists, DMZ, DDoS Protection, Filters, SPI firewalls
- Establishes a secured mechanism for centralized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority

Easy Maintenance
- DeviceHub provides easy setup, mass configuration, and centralized management of remote devices
- The user-friendly web interface design and more than one option of upgrade help the administrator to manage the device easily
- WEB GUIand CLI enable the admin to achieve simple management and quick configuration among a large number of devices
- Efficiently manage the remote routers on the existing platform through the industrial standard SNMP

This product is listed in 5G/LTE Gateways, Digital Signage, Industrial Automation, Mining, Transport

Specifications

Hardware System	CPU	ARM Cortex-A7, 528 MHz
Hardware System	Memory	128 MB DDR3 RAM and 128MB Flash
Cellular Interface	Antenna Connector	1 × 50 Ω SMA Connectors (Center PIN: SMA Female)
Cellular Interface	SIM Slots	1 (Mini SIM-2FF)
Ethernet Interface	Numbers	1 × WAN + 1 × LAN or 2 × LAN
	Property	1(Mini SIM-2FF)
	Mode	Full or half-duplex (Auto-Sensing)
	PoE	2 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Software	Network Protocols	IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH, etc.
	VPN	DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
	Security	Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
	Management	Web, CLI, SMS, On-demand dial-up, SNMP v1/v2/v3, DeviceHub
	AAA	Radius, Tacacs+, LDAP, Local Authentication
	Multilevel Authority	Multiple Levels of User Authority
	Reliability	VRRP, WAN Failover
Power Supply	Power Connector	2-pin 5.08 mm Terminal Block
Power Supply	Input Voltage	9-48 VDC, with Surge-Protection and Reverse Polarity Protection
Physical Characteristics	Ingress Protection	IP30
	Housing	Metal
	Dimension	108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
	Installation	Desktop, Wall or DIN Rail Mounting
Environmental	Operating Temperature	-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Ab
	Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
	Ethernet Isolation	1.5 kV RMS
	Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉
