Brand: Transcend

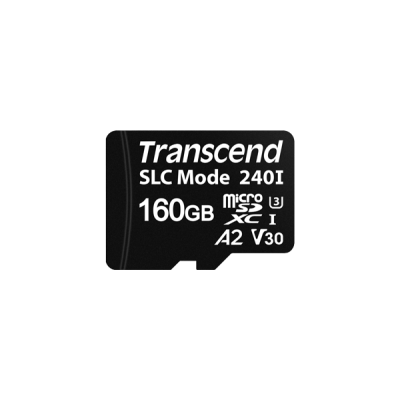

USD240I microSD Cards
In stock
SKU:
TSxxxxUSD240I
112-layer 3D NAND flash with SLC Mode technology -40℃~85℃ microSDXC memory card
Key Features:
- Built-in LDPC ECC (Error Correction Code) functionality
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Wear-Levelling
- Compliant with RoHS 2.0 standards
- Electrostatic protection (ESD IEC 61000-4-2)
- Compliant with SD specification 6.1
- Compliant with UHS-I
- Compliant with Video Speed Class 30 (V30)
- Compliant with Application Performance Class 2 (A2)
- Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
Enquire Now
Enquire Now
Transcend's USD240I microSDXC memory card combines the benefits of high performance and exceptional endurance at a reasonable price. It uses premium 112-layer 3D NAND flash with SLC Mode technology and is rated to withstand 100K P/E cycles. With a broad operating temperature range of -40°C to 85°C, Transcend's microSDXC USD240I is perfect for write-intensive apps like outdoor transportation, surveillance systems, digital signage, and POS terminals.
Key Features:
- Built-in LDPC ECC (Error Correction Code) functionality
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Wear-Levelling
- Compliant with RoHS 2.0 standards
- Electrostatic protection (ESD IEC 61000-4-2)
- Compliant with SD specification 6.1
- Compliant with UHS-I
- Compliant with Video Speed Class 30 (V30)
- Compliant with Application Performance Class 2 (A2)
- Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
|
Appearance |
|
|
Dimensions |
11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04") |
|---|---|
| Form Factor |
|
|
Storage |
|
| Flash Type |
|
| Capacity |
|
|
Operating Environment |
|
| Operating Voltage |
|
| Drop Test |
|
| Operating Temperature |
|
| Storage Temperature | -40°C (-40°F) ~ 85°C (185°F) |
| Humidity | 0% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 10 Hz ~ 2,000 Hz (frequency) |
|
Power |
|
| Power Consumption (Max.) | 2.88 watt(s) |
|
Performance |
|
| Read Speed (Max.) | up to 100 MB/s |
| Write Speed (Max.) | up to 80 MB/s |
| Terabytes Written (TBW) | up to 6,763 TBW |
| Note |
|
