Brand: Axiomtek

UST510-52B-FL Fanless Embedded System 9th/8th Gen i7/i5/i3/Celeron/Pentium/Xeon

In stock
SKU:
UST510-52B-FL-A

Fanless Embedded System with LGA1151 9th/8th Gen Intel Core i7/i5/i3, Celeron, Pentium, and Xeon Processor

Key Features:

  • CE, FCC and E-Mark certified
  • LGA1151 9th/8th Gen Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (up to 65W) with Intel C246
  • Fanless and Wide operating temperatures from -40°C to +70°C
  • Up to 8/16 GbE PoE port by M12/RJ-45 connector type; none PoE port LAN by RJ45 connector
  • Supports M.2 Key B and M.2 Key E for wireless communication module
  • Intelligent solution of Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
  • Convenient swappable HDD/SSD slots and flexible I/O windows

Enquire Now
Enquire Now

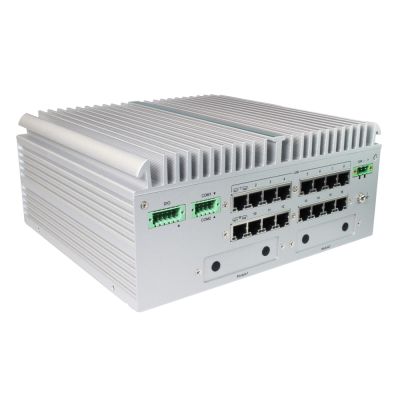

main product photo
We build to order

The UST510-52B-FL is an E-Mark certified in-vehicle embedded system that now comes with support for four swappable 2.5-inch SATA drives featuring Intel® RAID 0/1/5/10, ensuring more secure data storage and transmission. This all-in-one in-vehicle box PC can function effectively across a wide temperature range from -40°C to 70°C and endure vibrations of up to 3 Grms.

The UST510-52B-FL offers eight/sixteen PoE ports with M12/RJ-45 connectors and supports remote PoE management software, streamlining the NVR and security surveillance deployment efforts and enhancing monitoring efficiency. Additionally, it incorporates Smart Ignition power control to safeguard the vehicle battery from unstable voltages. With its high level of integration, the UST510-52B-FL is an excellent fit for various in-vehicle applications, such as NVR, onboard security surveillance, vehicle controls, fleet monitoring, and onboard passenger infotainment systems.

Key Features:

  • CE, FCC and E-Mark certified
  • LGA1151 9th/8th Gen Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (up to 65W) with Intel C246
  • Fanless and Wide operating temperatures from -40°C to +70°C
  • Up to 8/16 GbE PoE port by M12/RJ-45 connector type; none PoE port LAN by RJ45 connector
  • Supports M.2 Key B and M.2 Key E for wireless communication module
  • Intelligent solution of Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
  • Convenient swappable HDD/SSD slots and flexible I/O windows

This product is listed in Axiomtek, Industrial Automation, Mining, Transport, Railway Computers
Specifications
CPU
  • LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (CPU TDP max. up to 65W)
Chipset
  • Intel® C246
System Memory
  • 2 x 260-pin DDR4-2666 ECC/non-ECC SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x Terminal block RS-232/422/485 (4-wire)
USB
  • 4 x USB 3.0
PoE
  • Up to 8 x RJ-45 & 8 x M12/ 16 x RJ-45
  • PoE output max. 90W supports PoE & PoE+
  • PoE (802.3af 15.4W/port)
  • PoE+ (802.3at 30W/port)
Ethernet
  • Flexible LAN selection:
  • 1 x Non-PoE RJ-45 GbE LAN + 8 x PoE RJ-45 GbE LAN with 2 SATA (Intel® I210-AT)
  • 1 x Non-PoE RJ-45 GbE LAN + 8 x PoE M12 A-code GbE LAN with 4 SATA (Intel® I210-AT)
  • 1 x Non-PoE RJ-45 GbE LAN + 16 x PoE RJ-45 GbE LAN with 4 SATA (Intel® I210-AT)
Display
  • 1 x VGA (supports up to 1920 x 1200 @60Hz)
  • 2 x HDMI (supports up to 4K/2K @30Hz)
CANbus
  • N/A
Digital I/O
  • 1 x Terminal block isolated 6-in/2-out DIO (isolation voltage: 2 kV)
Audio
  • 1 x Mic-in, 1 x Line-out
Storage
  • 2 x 2.5” 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1 supported
  • 4 x 2.5” 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1/5/10 supported
  • 2 x mSATA (occupied 2 x PCI Express Mini Card slot)
Expansion
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot (1 x mSATA/USB/PCIe)
  • 1 x Half-size Rev.1.2 PCI Express Mini Card slot (1 x mSATA/USB)
  • 1 x M.2 Key B 3050/3042
  • 1 x M.2 Key A & E 2230
Others
  • TPM 2.0
  • 1 x Reset button
  • 4 x Antenna opening
  • 2 x External accessible SIM card socket
  • 2 x Flexible I/O window
Power Supply
  • General use: 1 x Terminal block, 9 to 36 VDC (typical 24V)
  • Vehicle: 1 x Terminal block, 9 to 36 VDC with Smart Ignition(typical 24V)
Power Consumption
  • DC 24V@6.91A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, supports up to IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 10% to 95%, non-condensing
Vibration
  • 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 0.8 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 2.5 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock
  • N/A
Dimensions
(W x D x H)
  • 8RJ 2SATA SKU: 240 x 210.5 x 82.2 mm (9.45" x 8.29" x 3.24”)
  • 8M12 4SATA SKU: 240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
  • 16RJ 4SATA SKU: 240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
Weight (net/gross)
  • 8RJ 2SATA SKU: 4.16 kg (9.17 lb)/4.82 kg (10.62 lb)
  • 8M12 4SATA SKU: 4.81 kg (10.604lb)/6.06kg (13.36lb)
  • 16RJ 4SATA SKU: 4.796kg(10.57lb)/6.05kg(13.33lb)
Certifications
  • CE (Class A), FCC (Class A), E-Mark certified
EOS Support
  • Windows® 10/11 64-bit, Linux
Software Support
  • AXView
Mounting
  • Wall mount



Downloads
pdf
Datasheet
