Brand: Nexcom

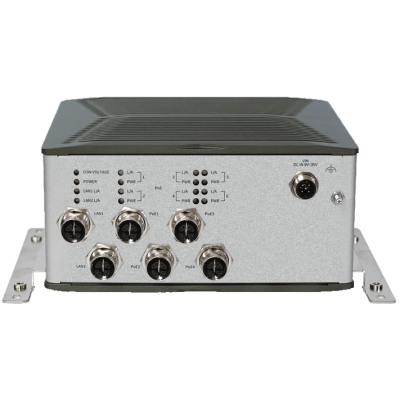

VES31-4SR/8SR 4/8 POE + 2 GbE Switch for Rail

In stock

SKU:

VES31-4SR/8SR

4/8 x IEEE 802.3af/at-compliant Gigabit Ethernet ports, 120W
4/8 PoE+ standard+2 x Gigabit Ethernet ports with M12 X-coded connector
Low battery voltage protection
CE/FCC/UKCA/EN50155 class OT4 conformity
Wide power input range 9~36VDC
Jumbo frame support (up to 9216 Bytes)
Ignition power on/off support
Power on/off delay time setting

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The fanless VES 31-4SR/VES 31-8SR unmanaged mobile PoE switch is ideal for telematics applications in harsh environments. It has 6/10 Gigabit Fast Ethernet ports, including 4/8 IEEE 802.3af/at compliance PoE+ ports, for smoothly and quickly transferring large amounts of video streaming, voice, and critical data across an Ethernet network.

For trains with a 24VDC power system, the mobile PoE switches support a wide voltage input range of 9VDC to 36VDC. Smart power management is provided by VES 31-4SR/VES 31-8SR, which includes low battery voltage protection, a power-on and power-off delay timer, and auto ignition power on/off functions. These distinct features can ensure reliable operation and prevent both PoE switches and trains from failing prematurely.

VES 31-4SR/VES 31-8SR are fanless dustproof enclosures that can withstand shock, vibration, and temperature extremes ranging from -40 to 70°C. The mobile PoE switches are also small in size and support din rail mounting for ease of installation with PD devices like IP cameras and Wi-Fi access points.

Key Features:

4/8 x IEEE 802.3af/at-compliant Gigabit Ethernet ports, 120W
4/8 PoE+ standard+2 x Gigabit Ethernet ports with M12 X-coded connector
Low battery voltage protection
CE/FCC/UKCA/EN50155 class OT4 conformity
Wide power input range 9~36VDC
Jumbo frame support (up to 9216 Bytes)
Ignition power on/off support
Power on/off delay time setting

This product is listed in Mobile Computing, Industries, Partners, Mining, Transport

Specifications

Architecture	Switch architecture. Highly integrated, unmanaged-smart gigabit, store and forward switch 2K entry MAC address table with 4-way hash algorism
Power over Ethernet	PoE standard IEEE 802.3af/at Power over Ethernet/PSE PoE power supply type end-span PoE power output per port 54V DC, 550mA. max. 30 watts
Network Connector	4/8-port M12 X-coded for 10/100/1000 base-T. PoE IEEE 802.3af/at compliance, a total of 120W 2-port M12 X-coded for 10/100/1000 base-T
Standard Compliance	IEEE 802.3 for 10BaseT Ethernet IEEE 802.3u for 100BaseT(X) Fast Ethernet IEEE 802.3ab for 1000BaseT(X) Gigabit Ethernet IEEE 802.3x for flow control IEEE 802.3af/at Power Over Ethernet
I/O Interface	Power: 9~36VDC input with ignition Ethernet 4/8 x M12 X-coded 10/100/1000 Mbps PoE port, 802.3af/at compliance 2 x M12 X-coded 10/100/1000 Mbps LED 1 x power indicator (For PoE) 4/8 x PoE indicator + 4/8 x Link/Active indicator (For LAN) 2 x Active/Link indicator 1 x low voltage protection indicator
Power Management	Selectable boot-up & shut-down voltage for low power protection by DIP switch Power on/off delay time setting by DIP switch
Dimensions	211 x 89 x 140 mm (83"x35"x55.1") with wall mount bracket Weight: 1.3kg Support Horizontal Mounting, DIN- Rail Mounting (option)
Environment	Storage temperatures: -40°C to 85°C Relative humidity: 10% to 90% (non-condensing) Vibration (random): 2g@5~500 Hz Vibration: Operating: MIL-STD-810H, Method 514.8C Procedure 1, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810H, Method 514.8E Procedure 1, Category 24 Shock: Operating: MIL-STD-810H, Method 516.8 Procedure I, trucks and semitrailers=40g Non-Operating: MIL-STD-810H, Method 516.8 Procedure V, crash hazard shock test=75g
Standards/Certifications	CE approval FCC Class A UKCA EN 50155, class OT4 (-40~70°C), 85°C for 10 minutes with air flow

Downloads

Datasheet

User Manual*

You have to Login or Register to download this file

Ordering Information

VES 31-4SR (P/N: 10VE0003102X0)
4 x M12 X-Coded 10/100/1000 PoE port (802.3af/at), 2 x M12 X-coded 10/100/1000 Ethernet port, 9~36VDC input, ignition detection, low voltage protection, delay timer, EN50155

VES 31-8SR (P/N: 10VE0003103X0)
8 x M12 X-coded 10/100/1000 PoE port (802.3af/at), 2 x M12 X-coded 10/100/1000 Ethernet port, 9~36VDC input, ignition detection, low voltage protection, delay timer, EN50155
