Brand: Nexcom

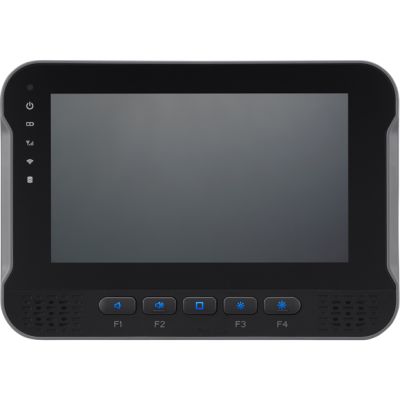

VMC2020 8" Rugged Vehicle Mount Computer
In stock
SKU:
VMC2020-PC1
8" Rugged Vehicle Mount Computer with Intel Atom® E3950 processor, Touch Screen and IP65
Enquire Now
Enquire Now
VMC 2020, 8-inch all in one vehicle mount computer, suitable for the warehouses, port, logistic and material handling markets. VMC 2020 is able to support analog camera x 4 (optional); back-up battery; LCD panel: 1,000nits typ. sunlight-readable; and a wide-range power input (9V~60V).
- 8" TFT LCD monitor with projected capacitive touch screen
- IPS LCD with wide viewing angle and resolution 1280 x 720
- Touch panel cover thickness 3mm for IK08 protection
- Sunlight readable capability: 1,000nits LCD brightness
- CVBS input for analog camera x 4 (optional)
- Isolated CANBus 2.0 x 1
- Back-up battery for approx.15 min of operation (optional)
- Wide range DC input from 9V~60V DC in
- Complete IP65 waterproof
- Touchscreen is operable with various gloves (even with water spillage)
| LCD Panel | 8-inch TFT LCD panel with LED backlight1280 x 720 pixels (HD)Brightness: 1000 cd/m² (typical)Viewing angle: 170° (H)/170°(V)Contrast ratio: 1000:1 (typical) |
| Touch Screen | Projected capacitiveAnti-glare coating surfaceTransmission rate: 80 ± 3% |
| CPU | Intel Atom® processor quad core E3950, up to 2.0GHz, 12W, 4 core |
| Memory | 1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB |
| Storage | 1 x eMMC 64GB (BOM optional 128GB)1 x mSATA (occupied mini-PCIe slot) |
| Expansion | 1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0)1 x Full size mini-PCIe socket (USB 2.0, PCIe 2.0/SATA 3.0)1 x M.2 3042/3050/3052 Key B socket (USB2.0, USB 3.0/PCIe 2.0 (BOM optional)) for LTE/5G NR module with 2 x external Nano-SIM slot |
| GNSS and Onboard Sensor | 1 x Default u-blox NEO-M8N GNSS for GPS/Glonass/QZSS/Galileo/BeidouOptional M8U modules with dead reckoning availableG Sensor (3-axis, 10-bit resolution) |
| LAN | 1-port LAN, 10/100/1000 Mbps Intel® I210-IT GbE |
| Security | TPM 2.0: Infineon SLB9665TT2.0FW5.62 (BOM optional) |
| I/O Interface-Front | Volume control keys (+/-) with LEDBrightness control keys (+/-) with LEDF1~F4 programmable function keys with LED1 x Shift key with LED1 x Light sensor5 x LED indicators (power, battery, WWAN, WLAN, storage)2 x Built-in 2W speakers1 x Built-in Mic |
| I/O Interface-Lateral | Left Side - 1 x System reset button w/ cover - 2 x Nano SIM slot w/ coverRight Side - 1 x Power button - 1 x USB 3.0 type A connector w/ cover - 1 x Mic-in, 1 x Line-out w/ cover |
| I/O Interface-Rear | 1 x Full RS232 (COM, w/ 5VDC, 12VDC)1 x Power connector, M12 A-coded 5-pin1 x 10/100/1000 Mbps LAN, M12 A-coded1 x M12 A-coded 8pin for 2 x USB 2.01 x M12 (MULTI PORT1, A-coded 8-pin) - 2 x GPI - 2 x GPO - 1 x Isolated CANBus 2.0B1 x M12 (MULTI PORT2, A-coded 12-pin) - 1 x RS232 (Tx, Rx) - 1 x RS232 (Tx, Rx)/RS422/RS485 - PWM (speed)+direction+GND, optional 4 x composite video input/ CAN-062 x SMA connector for WWAN3 x SMA connector for WLAN1 x SMA connector for Bluetooth1 x SMA connector for GNSS |
| Mechanical | Cooling system: fanlessEnclosure: plasticIK Rating: IK08 (housing and touch screen)Mounting: VESA 75Ingress protection: complete IP65Dimension: 250 x 179 x 67.5 mmWeight: 2.6 kg |
| Power Management | 9V~60V DC inBack-up battery for approx. 15 min of operation (optional)Reverse protection/over voltage protection/under voltage protectionIgnition on/off control & programmable on/off delay timingWake up by LAN, SMS, RTC and ignition |
| RFID Module (optional, occupied 1 x USB 2.0) | 13.56-MHz RFID/contactless standard protocolsCompatibles with all major global secured baseband ISO standards including ISO14443 Type A, MIFARE classic cards, and Smartlabel ISO15693 |
| Environment | Operating temperatures: Ambient with air -30°C to 60°C, ambient with air and without batteryStorage temperatures: -40°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration (random) - 2g@5~500 Hz (in operation)Vibration - Operating: MIL-STD-810G, 514.6 Procedure 1,Category 4 - Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24Shock - Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40g - Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, groundequipment = 75g |
| Operating System | Windows 10Linux (Kernel 4.x) |
| Standards/Certifications | CE/FCC class B/E13/IK08 |
