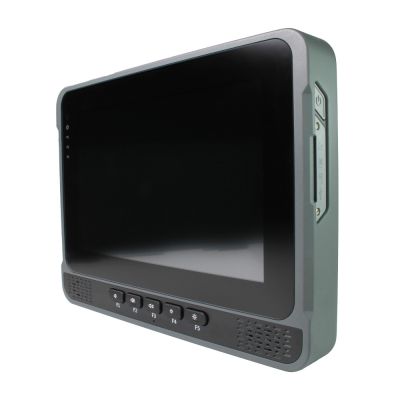

Introducing the VMC 3030, a 10.1-inch all-in-one vehicle mount computer built for warehouses, ports, logistics, and material handling markets. It is equipped with the Intel Atom® x7433RE processor, which supports both Windows and Linux platforms. The device is designed with an IP65 and IK08-rated front panel, making it robust and resistant to harsh environments. With a 1,000nits typ. LCD panel, it ensures readability even in sunlight. The device supports a wide range of power input from 9V to 60V, making it suitable for various facilities and vehicles. It also features an M.2 slot x 2 and mPCIe slot x 1, which are designed for WWAN and WLAN wireless connectivity.
1 x 262-pin DDR5 SO-DIMM socket support 4800MHz up to 16GB
Default 4800MHz, 8GB
Video Output
1 x HDMI 2.1 up to 4096 x 2160@60Hz
Storage
1 x M.2 2280 Key M for SATA 3.0
1 x mSATA (occupied mini-PCIe slot)
1 x Micro SDXC Slot (BOM optional)
Expansion
1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0)
1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0 x2), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0, PCIe 3.0)
1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen2) for LTE/5G NR module with 1 x external dual Nano-SIM slot
GNSS and Onboard Sensor
1 x Default u-blox NEO-M9N GNSS for GPS/Glonass/QZSS/Galileo/Beidou
Optional M9V modules with dead reckoning available
G Sensor and gyroscope
LAN
1-Port LAN, 10/100/1000/2500 Mbps, M12 X-coded
Security
TPM 2.0: Infineon SLB9670VQ2.0
I/O Interface-Front
F1 ~ F5 programmable function keys (or volume control keys (+/-), brightness control keys (+/-), volume mute)
1 x Light sensor
4 x LED indicators (1 x power, 3 x programmable)
2 x Built-in 2W speakers
1 x Mic
I/O Interface-Lateral
Right side - 1 x Power button - 1 x USB 2.0 type A connector w/ cover - 1 x System reset button w/ cover - 1 x MicroSD slot w/ cover (BOM optional) - 1 x Dual Nano-SIM slot w/ cover
I/O Interface-Rear
2 x DB9 (COM1/2) for full RS232/422/485
1 x Power connector, M12 A-coded 5-pin
1 x 10/100/1000/2500 Mbps LAN, M12 X-coded 8-pin
2 x USB 3.2 Gen1 type A
1 x HDMI output
1 x DB9 female (audio) for Mic-in (stereo), 1 x Line-out (stereo)
1 x DB15 (multi port) - 2 x GPI - 2 x GPO - 1 x Isolated CAN FD, compatible with CAN2.0A/2.0B - PWM (speed)+Direction+GND
4 x SMA connector hole for WWAN
2 x RP-SMA connector hole for WLAN
1 x RP-SMA connector hole for Bluetooth
1 x SMA connector for GNSS
Mechanical
Cooling system: fanless
Enclosure: metal
IK rating: IK08 (housing and touch screen)
Mounting: VESA 75/100
Ingress protection: front panel IP65
Dimension: 294.0mm (W) x 227.5mm (H) x 54.0mm (D)
Weight: 4.5kg
Power Management
9V ~ 60V DC in
Reverse protection/over voltage protection/under voltage protection
Ignition on/off control & programmable on/off delay timing
Wake up by SMS, RTC, LAN and ignition
Environment
Operating temperatures: Ambient with air -30°C to 60°C, ambient with air
10.1" rugged vehicle mount computer with Intel Atom® processor x7433RE, projected capacitive touch screen and font panel IP65, 8GB DDR5 SO-DIMM, DC input 9~60 VDC
