Brand: Milesight IOT
VS132 LoRaWAN 3D ToF People Counting Sensor
In stock
SKU:
VS132 - replaced by VS133
3D ToF people counting sensor
End of Life
Enquire Now
Enquire Now

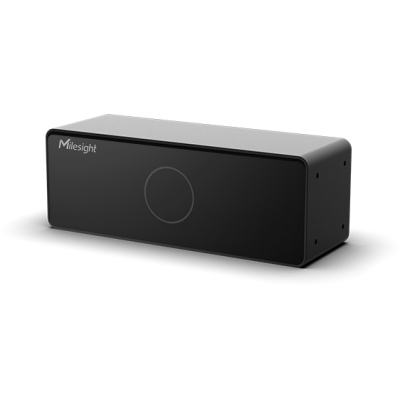

The VS132 is a LoRaWAN 3D ToF people counting sensor that counts the number of people entering and exiting a building. Utilizing the most cutting-edge Time-of-Flight technology, VS132 only collects depth maps rather than images in order to protect user privacy and provide accuracy levels of up to 99.5%. With the help of the Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can track the movement of people and set off connections that let them remotely control other devices using a browser or mobile app. The VS132 is an excellent choice for entrances or hallways of shops, malls, workplaces, subways, etc. because of its simple installation.
Key Features:
- Up to 99.5% accuracy based on advanced 3D Time-of-Flight technology
- Obtain depth map without image capturing, free from privacy concerns
- Effective in low-light or complete darkness environments
- Bi-directional Counting
- Store a million data records locally
- DC or PoE power supply optional
- Exquisite design for multiple installation scenarios
- Equipped with Wi-Fi and Ethernet port for web GUI configuration
- Acquire people counting data either from LoRaWAN or Ethernet port (CGI)
| Wireless Transmission | Protocol | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 | |
| Max Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) | |
| Sensitivity | -137 dBm @300bps | |
| Mode | OTAA/ABP Class C | |
| People Counting | ToF FoV | 92.5 ° Horizontal, 67 ° Vertical |
| Detection Range | 0.5 to 3m | |
| Installation Height | ≤ 3m | |
| Accuracy | >99.5% | |
| Local Storage | 1, 000, 000 data records | |
| Advanced Setting | Entrance and exit area customization | |
| Interface | Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz, only supports configuration |
| Ethernet Port | 1 × RJ45 10/100 Mbps Ethernet Port (PoE PD), provides CGI for integration | |
| Power Input | 2-pin 5.08 mm Terminal Block | |
| Physical Characteristics | Power Supply | 1. 12 VDC, 2A by Terminal Block 2. 1 × 802.3 at PoE input |
| Power Consumption | Typical 7.5 W, max 28 W | |
| Operating Temperature | -10°C ~ +60°C | |
| Storage Temperature | -20°C ~ +60°C | |
| Relative Humidity | 0 ~ 95% (Non-condensing) | |
| Color & Material | Black, Aluminum Alloy | |
| Weight | 296 g | |
| Dimension | 140 × 50 × 50 mm (5.51 × 1.97 × 1.97 in) | |
| Installation | Ceiling Mounting, Wall Mounting, Embedded Mounting |
