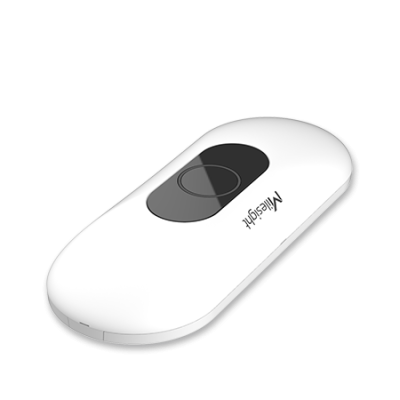

VS133 LoRaWAN AI ToF People Counting Sensor
LoRaWAN® VS133 AI ToF People Counting Sensor
Key Features
- Up to 99.8% accuracy combining the 2nd generation ToF technology and AI algorithm
- Allow to collect people counting data by differentiating between children and adults and detecting staffs via
identification features for clearer people analysis - Wider field angle to obtain longer-distance depth maps and cover a larger area
- Working well even in low-light or completely dark environments with great lighting adaptability
- Free from privacy concerns without image capturing
- Smart U-turn counting to filter redundant counting of people wandering in the area
- High compatibility of data transmission either from LoRaWAN® or Ethernet port (HTTP/MQTT/CGI)
- Various serial ports are equipped in the VS133 PoE version
- 4GB flash storage to store a million counting data locally and securely
- Easy configuration via Wi-Fi or Ethernet port for web GUI configuration
- Function well with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud or Milesight DeviceHub
The VS133 is an advanced sensor that utilizes second-generation Time-of-Flight (ToF) technology to precisely count people. This technology offers enhanced depth mapping and longer detection distances while maintaining strong privacy protection. By leveraging the power of ToF and AI algorithms, the sensor can accurately handle complex scenarios and accurately differentiate non-human objects with an impressive accuracy rate of up to 99.8%.
The VS133 sensor seamlessly integrates with Milesight LoRaWAN® gateways and the Milesight IoT Cloud. Additionally, the PoE version, VS133-P, provides convenient Ethernet connectivity and various data transmission options. With its user-friendly installation process, the VS133 and VS133-P sensors are perfectly suited for retail stores, malls, offices, subways, and other locations where entrances or corridors need reliable and efficient people counting capabilities.
Key Features
- Up to 99.8% accuracy combining the 2nd generation ToF technology and AI algorithm
- Allow to collect people counting data by differentiating between children and adults and detecting staffs via
identification features for clearer people analysis - Wider field angle to obtain longer-distance depth maps and cover a larger area
- Working well even in low-light or completely dark environments with great lighting adaptability
- Free from privacy concerns without image capturing
- Smart U-turn counting to filter redundant counting of people wandering in the area
- High compatibility of data transmission either from LoRaWAN® or Ethernet port (HTTP/MQTT/CGI)
- Various serial ports are equipped in the VS133 PoE version
- 4GB flash storage to store a million counting data locally and securely
- Easy configuration via Wi-Fi or Ethernet port for web GUI configuration
- Function well with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud or Milesight DeviceHub
|
Model |
VS133 |
VS133-P |
|
People Counting |
||
|
ToF FoV |
98 ° Horizontal, 80 ° Vertical |
|
|
ToF Light Beam |
940nm (Invisible) |
|
|
Measuring Accuracy |
< 3.5cm |
|
|
Detection Range |
0.5 to 3.5 m |
|
|
Installation Height |
≤ 3.5m |
|
|
Recognition Rate |
Up to 99.8% |
|
|
Advanced Feature |
Customized Multiple Counting Lines, Filter U-turns, Bi-directional Counting, Children/Adults Differentiation, Staff Detection |
|
|
LoRaWAN® Transmission |
||
|
Protocol |
LoRaWAN® |
- |
|
Frequency |
CN470/IN865/RU864/EU868/US 915/AU915/KR920/AS923-1&2& 3&4 |
|
|
Tx Power |
16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
|
|
Sensitivity |
-137 dBm @300bps |
|
|
Mode |
OTAA/ABP Class C |
|
|
Ethernet Transmission |
||
|
Ethernet Port |
- |
1 × RJ45 10/100 Mbps (PoE PD) |
|
Network Protocol |
HTTP, MQTT, NTP,etc. |
|
|
Other Interfaces |
||
|
Wi-Fi |
IEEE 802.11 b/g/n, 2.4GHz |
- |
|
Alarm I/O |
- |
1/1 |
|
Serial Interface |
- |
1 × RS485 |
|
Button |
1 × Wi-Fi/Reset Button |
1 × Reset Button |
|
LED Indicators |
1 × RGB LED Indicator |
|
|
Power Input |
1 × DC Jack Connector |
- |
|
Physical Characteristics |
||
|
Local Storage |
4GB Flash to store one million data |
|
|
Power Supply |
12VDC / 2A |
802.3at PoE |
|
Power Consumption |
Typical 7.8 W, max 22.2 W |
Typical 9.4 W, max 23.8 W |
|
Operating Temperature |
-20°C ~ +50°C |
|
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
|
|
Ingress Protection |
IP40 |
|
|
Dimension |
180 × 26 × 72 mm |
|
|
Installation |
Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with Optional Multifunctional Bracket) |
|
|
Installation Height (m) |
Monitored Area (m) |
Detection Area(m) |
|
2.5 |
5.75 × 4.20 |
1.84 × 1.34 |
|
2.6 |
5.98 × 4.36 |
2.07 × 1.51 |
|
2.7 |
6.21 × 4.53 |
2.30 × 1.68 |
|
2.8 |
6.44 × 4.70 |
2.53 × 1.85 |
|
2.9 |
6.67 × 4.87 |
2.76 × 2.01 |
|
3.0 |
6.90 × 5.03 |
2.99 × 2.18 |
|
3.1 |
7.13 × 5.20 |
3.22 × 2.35 |
|
3.2 |
7.36 × 5.37 |
3.45 × 2.52 |
|
3.3 |
7.59 × 5.54 |
3.68 × 2.69 |
|
3.4 |
7.82 × 5.71 |
3.91 × 2.85 |
|
3.5 |
8.05 × 5.87 |
4.14 × 3.02 |
