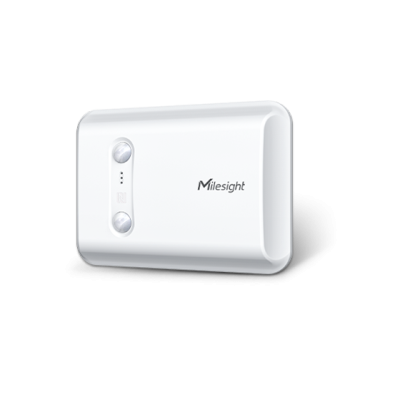

VS350 Passage People Counter
Count Smart, Spend Wise
Key Features:
-
LoRaWAN® Wireless Deployment
-
Flexible Bi-Directional People Counting
-
Cost-Effective Accuracy Performance
-
100% Anonymous Detection
-
Large Detection Area
-
4 Years Long Battery Life with High Report Frequency
-
Unique Milesight D2D Communication
-
Easy Installation
Passage People Counting in A Cost-Effective Way
With bi-directional detection using dual PIR sensors, the passage people counter brings applicable accuracy and redefines the way you cost-effectively track foot traffic.
Product Introduction
Solution
LoRaWAN® Wireless Deployment
Easy and convenient wireless deployment dispenses with being perplexed by network connection. The benefits of LoRaWAN® technologies guarantee low power consumption, long-distance transmission, deep penetration, and anonymous detection.

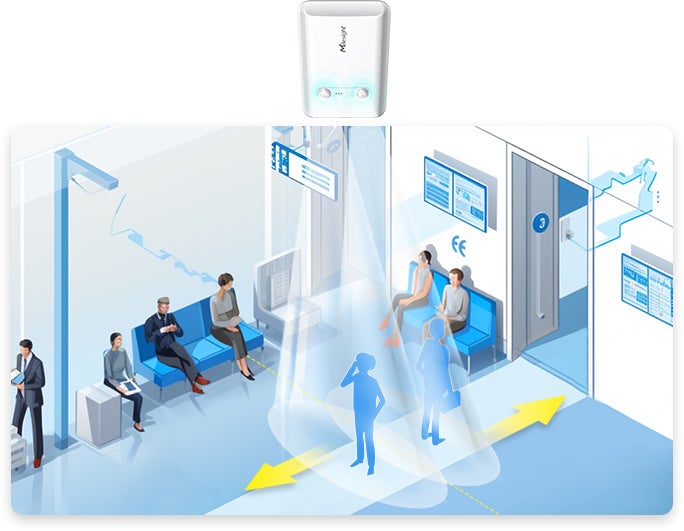

Bi-Directional People Counting
The Passage People Counter applies dual PIR sensors. It identifies the presence of people by detecting infrared radiation changes. Two PIR sensors work in tandem to detect moving directions determined by the signal waveform to differentiate bidirectional movements and realize clear two-way people counting.
|
People Counting |
|
|---|---|
|
Technology |
Dual PIR |
|
Installation Height |
Ceiling Mount: ≤ 3.0m Wall Mount: 1.2m~1.3m |
|
Detection Range |
Ceiling Mount: Passage Width = 2.8 m ( At the height of 3m) Wall Mount: Passage Width < 3.8 m |
|
Detection Rate |
Single Person1: Up to 95% Multiple People: Up to 80% |
|
Best Operating Temperature2 |
15 °C~32 °C |
|
Bi-directional Counting |
Support |
|
Temperature |
|
|
Range |
-30°C ~ 70°C |
|
Accuracy |
± 0.5°C |
|
Wireless Transmission |
|
|
Protocol |
LoRaWAN®, Milesight D2D |
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
|
Tx Power |
16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz) |
|
Sensitivity |
-137dBm |
|
Mode |
OTAA/ABP Class A |
|
Others |
|
|
LED |
1 × LED Indicator (Internal) |
|
Button |
1 × Reset Button (Internal) |
|
Configuration |
NFC Configuration via Mobile App |
|
Advanced Feature |
Data Storage, Data Retransmission, Milesight D2D Controller |
|
Physical Characteristics |
|
|
Power Supply |
2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
|
Battery Life3 |
Around 4 Years (10-min Interval, 25°C, 1000 People per Day ) |
|
Operating Temperature |
-20°C ~ 60°C |
|
Relative Humidity |
0% - 95% (Non-condensing) |
|
Ingress Protection |
IP30 |
|
Dimension |
100 x 70 x 21 mm ( 3.94 x 2.76 x 0.83in) |
|
Material & Color |
PC (Flame Retardant), White |
|
Installation |
Ceiling Mount, Wall Mount |
1 40-50 cm should be kept between two people while passing the detection area.
2 The sensitivity of PIRs is greatly influenced by ambient temperature. And the most effective working temperature
range is +15 to +32 °C.
3 Tested under laboratory conditions and for guideline purposes only.
