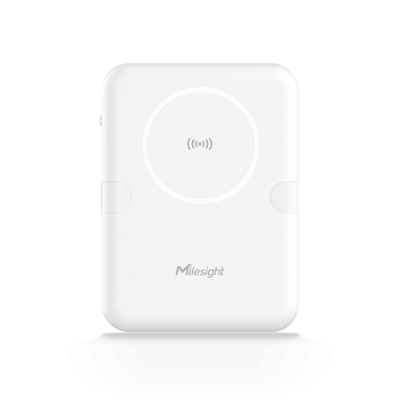

VS373 Radar Fall Detection LoRaWAN Sensor
Protecting Mobility-Challenged Individuals Alone
Key Features:
- High Fall Detection Accuracy of Up to 99%
- 24/7 Monitoring Even in Dark and Humid Environments
- 100% Privacy Protection
- Contactless Fall Detection
- IP65 Waterproof and Dustproof
- Support DO Interface
- Detect Fall, Occupancy, Bed Presence, Movement
- Instant Alerts For Immediate Intervention
- Software Compatibility To Unlock Data Potential
Cutting-Edge Fall Detection
Looking for a smart device to ensure safety in emergencies? Meet Milesight VS373, an intelligent fall detector for medical and elderly care. Using advanced 4D 60-GHz mmWave radar technology, which ensures superior precision and reliability even through obstacles, and AI, it offers non-contact, high-privacy fall monitoring with 99% accuracy.
Ideal for Elderly Care and Medical Facilities
VS373 is compatible with many smart platforms. Ideal for nursing home rooms, hospital wards, smart public restrooms, and accessible restrooms, the VS373 enhances traditional alarm systems, providing exceptional safety and peace of mind, and protecting mobility-challenged individuals when alone.
Advanced Fall Detection and Alert
Confirmation Phase:
If a fall is detected, a red light will flash slowly.
First Alert:
If the fall is confirmed, the red light will flash quickly, and a buzzer will sound. After the user-configured Fall Delay Reporting Time, the incident will be reported.
Emergency Alert:
Once the alert is sent, the on-site alert will continue for a short period before stopping.
Notice: Milesight is not liable for any issues caused by environmental factors affecting performance.
Perfect Fit for Various Indoor Settings
VS373 is designed to enhance safety and provide timely assistance in diverse indoor environments. Whether for the elderly or individuals with disabilities, VS373 ensures accurate activity monitoring and fall alerts, significantly enhancing safety when they are alone indoors.
Notice: This product is an auxiliary tool and cannot replace human supervision.
Versatile Installation
Installation Tips: Please pick the best method for your space. You can either ceiling mount with drilled holes and expansion bolts, or cutout mount with a larger hole and spring clips. Make sure to install it parallel to the ceiling and floor, and keep it at least 1 meter from the wall.
|
Fall Detection1 |
|
|---|---|
|
Technology |
Millimeter Wave Radar |
|
Recognition Rate2 |
Up to 99% (Single Person) |
|
False Alarm Rate2 |
Down to 1% (Default fall configuration parameters) |
|
Installation Height |
2.3m～3m |
|
Advanced Feature |
Milesight D2D Controller & Agent, Occupancy Detection, In-Bed Detection, Motionless Detection, Data Storage, Data Transmission, Data Retrievability |
|
Radar |
|
|
Transceiver |
24 Transmitters & 22 Receivers |
|
Frequency |
60GHz |
|
FoV |
70 ° Horizontal, 140 ° Vertical |
|
Detection Range |
4m*5m (Within the installation height) |
|
Wireless Transmission |
|
|
Protocol |
LoRaWAN® , Milesight D2D |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
|
Tx Power |
16 dBm (868 MHz)/22 dBm (915MHz)/19 dBm (470MHz) |
|
Sensitivity |
-137 dBm @300bps |
|
Mode |
OTAA/ABP Class C |
|
Other Interfaces |
|
|
Wi-Fi |
IEEE 802.11 b/g/n, 2.4GHz (AP Mode for configuration) |
|
DI/DO |
1 × DO (60V/1A) |
|
Button |
1 × Reset Button,1 × Multi-function Button |
|
LED Indicators |
1 × Multi-color LED Indicator |
|
Buzzer |
1 × Buzzer |
|
Power Input |
1 × Type-C Cable (2m) |
|
Physical Characteristics |
|
|
Power Supply |
DC 5V/ 3A by Type-C Port |
|
Power Consumption |
Max: 9.5W |
|
Operating Temperature |
0°C ~ 50°C |
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
|
Dimension |
110 × 82 × 15 mm (4.33 × 3.23 × 0.59 in) |
|
Weight |
214.5g |
|
Ingress Protection |
IP65 |
|
Color & Material |
White, ABS (UL94 V1) |
|
Installation |
Ceiling Mounting |
VS373 - Radar Fall Detection Sensor
