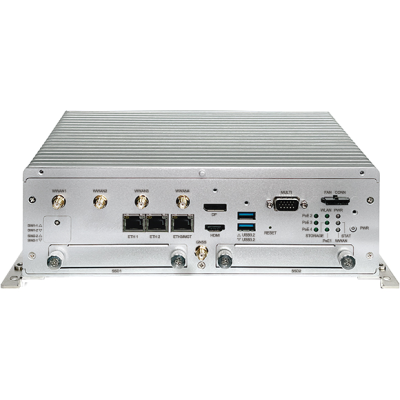

VTC7270 Fanless AI Powered Vehicle Computer
12/13th Gen Intel Core CPU 2 x 2.5GbE, 1 x GbE, 6 x USB 3.2, 2 x CAN FD & 4 x Serials, extra 4 x 2.5GbE PoE
Key Features:
- Powered by 12/13th Gen Intel® Core™ i with DDR5, excellent memory bandwidth, lower latency
- Rich I/Os, 2 x 2.5GbE, 1 x GbE, 6 x USB 3.2, 2 x CAN FD & 4 x Serials, extra 4 x 2.5GbE PoE (option)
- 2 x 2.5” SSD, 1 x NVMe ultra-speed SSD for data integrity
- Up to 4 WWAN/WLAN combinations for mobile router applications
- Up to two Hailo AI accelerator (26TOPS workload each) computing power in option
- 9~36V DC-IN with ignition control & OCP/OVP
- Wide range operating temperature of -40°C~70°C (fanless@35W CPU)
- Military standard for anti-vibration/shock
- CE/FCC, UKCA, Emark Certified
The VTC 7270 is an in-vehicle telematics computer that uses artificial intelligence and has 30% more processing capacity than its predecessor thanks to its Intel® 12/13th Gen processor. Any in-vehicle application, including fleet management, logistics/AMR, ITS, construction, ANPR, and security surveillance of public transit, among others, can be satisfied by its 10-year lifespan support.
The VTC 7270 can be installed widely in small spaces, can withstand harsh environments, and has a fanless design that greatly lowers maintenance expenses for continuous operation. The VTC 7270 is a complex AI-aided telemetric computer that also includes a variety of peripherals, such as triple displays, a wide-range 9–36VDC with IGN control, 2.5GbE, 6 USB 3.2, 2 isolation CAN FD, 4 serial ports, NVMe storage, and 5 extension slots.
The user can set up LTE/5G modems, Wi-Fi 5/6 modules, and one or two Hailo AI accelerators (26TOPS) to function as the edge AI and implement AI services that collaborate with cloud SaaS. The VTC 7270 also complies with MIL-STD-810H military standards for vibration and shock resistance and can work in harsh environments with temperatures ranging from -40°C to 65°C. The VTC 7270 conforms with CE/FCC classA, UKCA, and Emark regulations in terms of compliance. (E13).
Key Features:
- Powered by 12/13th Gen Intel® Core™ i with DDR5, excellent memory bandwidth, lower latency
- Rich I/Os, 2 x 2.5GbE, 1 x GbE, 6 x USB 3.2, 2 x CAN FD & 4 x Serials, extra 4 x 2.5GbE PoE (option)
- 2 x 2.5” SSD, 1 x NVMe ultra-speed SSD for data integrity
- Up to 4 WWAN/WLAN combinations for mobile router applications
- Up to two Hailo AI accelerator (26TOPS workload each) computing power in option
- 9~36V DC-IN with ignition control & OCP/OVP
- Wide range operating temperature of -40°C~70°C (fanless@35W CPU)
- Military standard for anti-vibration/shock
- CE/FCC, UKCA, Emark Certified
| CPU |
|
| Memory |
|
| Storage |
|
| Expansion Slots |
|
| Display |
|
| 2.5GbE |
|
| GbE/MGT |
|
| USB |
|
| Serial Port |
|
| Security |
|
| Audio & DC-OUT |
|
| MEMS Sensor |
|
| DI/DO |
|
| CAN Bus |
|
| GNSS |
|
| Power Supply |
|
| I/O Ports, Front-Plate |
|
| I/O Ports, Rear-Plate |
|
| Dimensions & Weight |
|
| Environment |
|
| Vibration & Shock |
|
| Certifications |
|
| Operating System |
|
| Options |
- Model No.: VTK FAN120-01, Description: 120mmx120mm, 60W heat dissipate |
You have to VTC7270 (P/N: 10V00727000X0)
12/13th Gen Intel® Core™ , 2 x 2.5GbE + 1 x GbE, 6 x USB 3.2, 4 x Serial,2 x 2.5”SSD, 2 x CAN FD, 9~36VDC/IGN
