The VTK-SCAP is a high-performance rechargeable UPS designed for NEXCOM vehicles and railway computers. It offers uninterrupted power and a sophisticated power management system. With enhanced charge/discharge efficiency and an RS232 interface for status monitoring, VTK-SCAP provides reliable backup power. It can deliver a maximum output power of 200W. In expansion mode (1 x VTK-SCAP-M + 3 x VTK-SCAP-S), VTK-SCAP can support a 60W system for up to 6 minutes. VTK-SCAP is suitable for extreme environments, leveraging supercapacitor technology, and operating reliably from -35°C to 80°C.
Approx. 90 seconds endurance for 60W @ 55°C, Approx. 36 seconds endurance for 60W @ 80°C
Maximum output power of 200W
SuperCap UPS Status Information
Input voltage
UPS health (Good/Error)
UPS status (Full/Charging/Discharging)
UPS temperature
UPS capacity
Ignition status/Ignition delay on timer
I/O Interface-Front
VTK-SCAP-M (In-vehicle) - 8-LEDs for power source, slave power, temp, power in - RS232 for UART - 1 x 5-pin terminal block DC input - 1 x 6-pin terminal block DC output

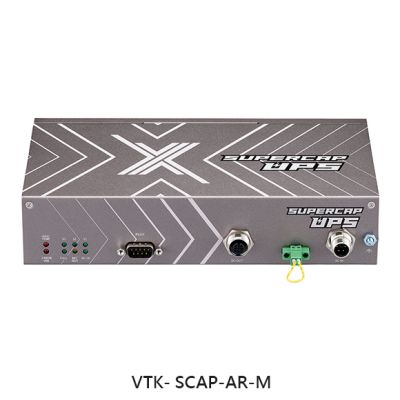

VTK-SCAP-AR-M (Railway) - 8-LEDs for power source, slave power, temp, power in - RS232 for UART - 1 x 2-pin terminal block for IGN - 1 x M12 K-code male DC input - 1 x M12 A-code female DC output
I/O Interface-Rear
VTK-SCAP-M (In-vehicle) & VTK-SCAP-AR-M (Railway) - 3 x [2 x 5 pin] connector for backup power expansion (slave power box)
VTK-SCAP-S (Slave for expansion) - 1 x [2 x 5 pin] connector to link to the master power box
Dimensions
VTK-SCAP-M, VTK-SCAP-AR-M, 235mm (W) x 134.5mm (D) x 50mm (H)
