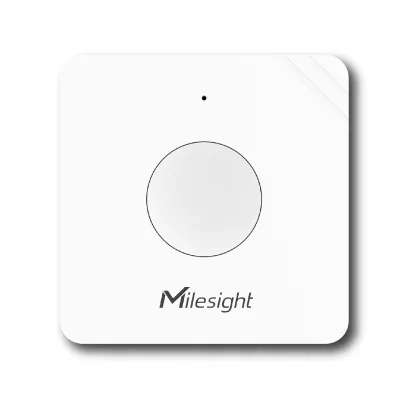

WS101 LoRaWAN Smart Button
Milesight's WS101 is a compact LoRaWAN®-based smart button with user-defined press actions, including an SOS alarm, ideal for smart homes, offices, hotels, schools, etc., and is compatible with Milesight LoRaWAN® gateways and IoT Cloud solutions.
Key Features:
- Effortlessly Execute Multiple Press Actions
- Harness the Power of LoRaWAN® Technology
- Configure with a Tap Using NFC Technology
- Enjoy a Reliable Battery Life of 5 Years
The Milesight WS101 is a LoRaWAN®-based smart button designed for wireless controls, triggers, and alarms. This versatile device supports multiple press actions, all of which can be customized by the user to manage devices or activate scenes. Additionally, Milesight offers a red button on the WS101, primarily intended for sending SOS alarms.
Compact and battery-powered, the WS101 is easy to install and convenient to carry everywhere. It is compliant with Milesight LoRaWAN® gateways and Milesight IoT Cloud solutions, allowing users to receive alarms and utilize the WS101 to remotely trigger other sensors or appliances via web or mobile apps. The WS101 finds widespread application in smart homes, offices, hotels, schools, and various other settings.
Mini but Powerful
Short Press
Double Press
Long Press
Wireless Transmission |
|
|---|---|
|
Technology |
LoRaWAN®, Milesight D2D |
|
Frequency |
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
|
Tx Power |
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
|
Sensitivity |
-137 dBm @300bps |
|
Mode |
OTAA/ABP Class A |
Interface |
|
|
Button |
1 × External Button + 1 × Reset Button (Internal) |
|
LED Indicator |
1 |
|
Buzzer |
Support |
Software |
|
|
Configuration |
NFC Configuration via Mobile App |
|
Advanced Feature |
Milesight D2D Controller |
Physical Characteristics |
|
|
Power Supply |
1 × 1650 mAh ER14335 Li-SOCl2 battery |
|
Battery Life* |
Over 5 years (1080 min interval + 10 presses per day) |
|
Operating Temperature |
-20°C to +60°C |
|
Relative Humidity |
≤90% (non-condensing) |
|
Ingress Protection |
IP30 |
|
Dimension |
50 × 50 × 18 mm (1.97 × 1.97 × 0.71 in) Button: Φ20 mm (Φ0.79 in) |
|
Material |
Anti-flaming Polycarbonate |
|
Color |
White (Button: White/Red Optional) |
|
Installation |
On the flat surfaces with screws or 3M tapes, Lanyard |
Approvals |
|
|
Regulatory |
CE, FCC, RoHS |
